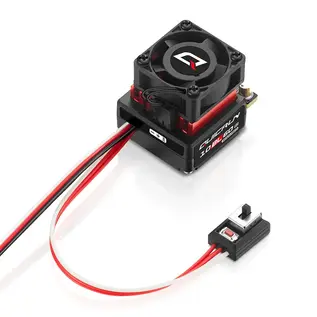

HWI30108001 QUICRUN Brushless ESC - 10BL60-SENSORED G2 (2S)
| type |
| Proportion |
1/ 10th |
| Brushed/Brushless |
brushless |
| Feeling/Not feeling |
Feeling |
| water proof |
Not waterproof |
|
| Hardware parameters |
| Continuous/Peak Current |
60A/200A |
| Number of batteries |
2S Lipo |
| BEC output |
Switching mode 6V/7.4V @4A |
|
| Cables and plugs |
| power cord |
Black - 14AWG - 175mm*1, Red - 14AWG - 175mm*1 |
| Output line |
Blue - 14AWG - 175mm*1, Yellow - 14AWG - 175mm*1, Orange - 14AWG - 175mm*1 |
| power plug |
none |
| Output plug |
none |
|
| fan |
| type |
Framed |
| size |
25x25x10mm |
| Supported voltage range |
6V |
| Power supply method |
Power source from BEC |
|
| Parametric programming |
| ESC's own SET button |
support |
| LED Setting Box |
support |
| LCD G2 setting box (discontinued) |
support |
| LCD PRO |
Bluetooth parameter tuning is supported (but not supported). |
| OTA Programmer |
Not supported |
| Programming Interface |
Shared with fan interface |
|
| Data Records |
| Extreme value record |
Not supported |
| Real-time data |
Not supported |
| Historical data (line graph) |
Not supported |
|
| firmware |
| Firmware online upgrade |
Not supported |
|
| Size and weight |
| size |
35.0*31*30.8mm |
| weight |
66.5g (including wire) |
|
| application |
| Supported motor types |
Sensored brushless motors and sensorless brushless motors |
| Applicable car models |
1/ 10th Electric Room/Electric Crossing/Drifting, 1/12th , 1/ 14th Models |
| Applicable motors |
QUICRUN 3650 SD G2 |
|
