HWA38040024 Hobbywing XRotor FPV Combo (2405 motor)
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
Part Number: | HWA38040024 |
Quantity In Stock: | 1 |
HWA38040024 Hobbywing XRotor FPV Combo (2405 motor)

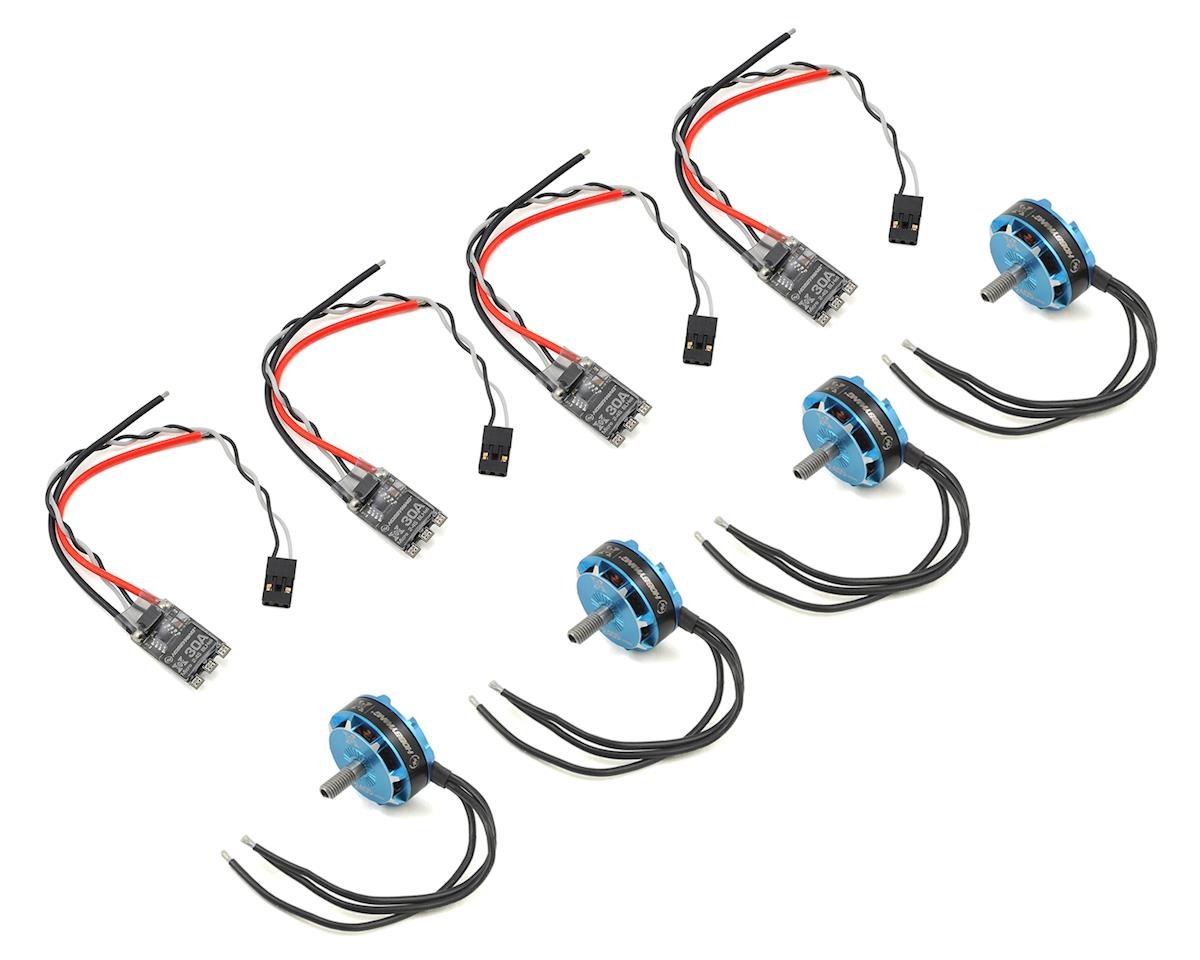

This is a Hobbywing Quadcopter Drone Power Pack, featuring Hobbywing 2405 2850 Brushless Motors (HWA30405405), and Hobbywing XRotor 30A ESCs (HWA30901075).
The Hobbywing XRotor 2405 series of FPV Racing Motors feature a handful of great design features that are packed together that offer nothing but incredible performance, and excellent reliability.
Featuring high strength CNC machined aluminum allow frame that incorporates a cross beam structure, & high previsision hollow alloy steel shaft, crash resistance and overall motor durability is a critical design choice. Offering an extra wide but short stator (24mm wide, 5mm height), the disc type structure provides a lower center of gravity compared to other motors, which translates to improved response while in flight. A single piece eight bladed centrifugal fan cools the motor during operation.
Features at a Glance:
The Hobbywing XRotor BLHeli-S DShot600 30A Multi-Rotor Brushless ESC is ideal for 150-280 aircraft and offers 2-4S LiPo support.
Features:
ESC Specifications:
LiPo Power Input: 2-4S
Cont. Current: 30A
Burst Current: 40A
BEC Output: N/A
Firmware: BLHeli-S A-H-5016.5
Oneshot 125/42: Supported
Multishot: Supported
DShot150/300/600: Supported
Size/Weight: 23.8x14.5x5.8mm / 6g
Motor Specifications:
KV: 2850kV
Voltage Input: 3-4s LiPo
No-Load Current (A/10V): 1.8A
Motor Resistance: 0.031 Ohms
Continuous Current: 25A - 420W
Slot/Plot Count: 12/14
Motor/Shaft Diameter: 30.8mm - 5mm
Weight: 35.5g
