HUD109351 Hudy Set-up Station & Set-up Tools + Carrying Bag for 1/10 Touring Cars

$510.00 Excl. tax

*AFFIRM Finance Offer Available on Total Purchases of $149 or More

Delivery time: Ships within 24hrs

Part Number:	HUD109351
Quantity In Stock:	1

HUD109351 Hudy Set-up Station & Set-up Tools + Carrying Bag for 1/10 Touring Cars

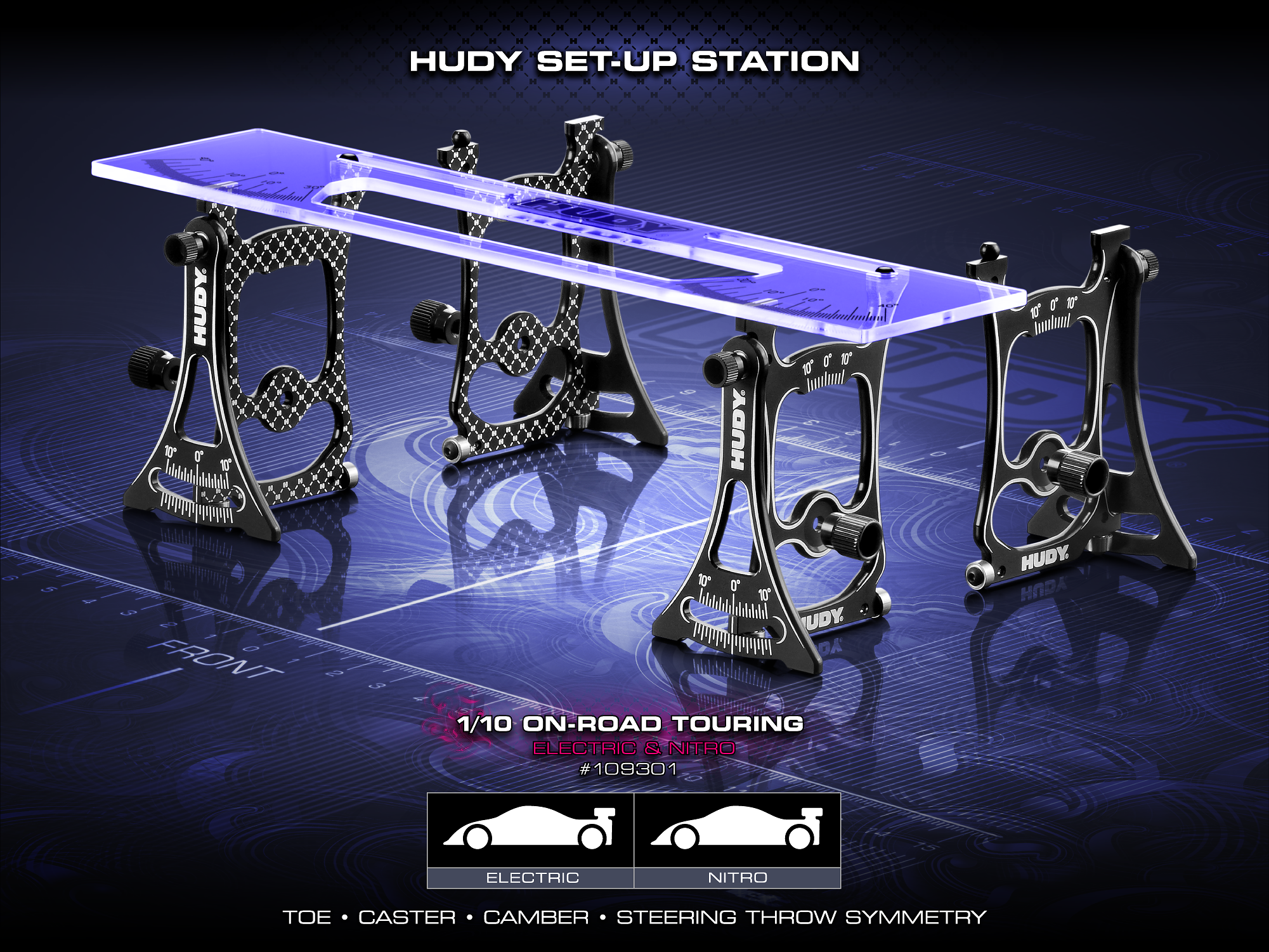

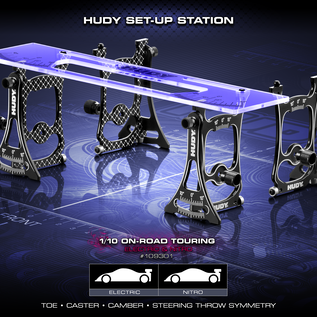

The HUDY Set-up Station for all 1/10 electric & nitro touring cars is a vital set-up tool used for a complete suspension geometry adjustment. The Set-up Station is used to measure and adjust the front & rear toe, caster, camber, camber gain and steering throw symmetry.

HUDY Set-up Stations have become an industry standard after more than 30 years as the most popular set-up tools in the RC world. Having the correct car setup is one of the most important factors in winning races and that is why HUDY Set-up Stations are used by the World Champions.

The stands are CNC-machined from high-grade Swiss 7075 T6 aluminum, black coated and laser engraved from both sides. The upside measure plate used for toe/steering adjustment is CNC-machined from tough acrylic plastic and features printed scratch resistant scales.

The Set-up Station includes aluminum assembly nuts for quick and straight-forward "one screw" assembly. The 12 high-precision ball-bearings ensure backlash-free & wobble-free operation and ultra-precise set-up adjustments.

The entire system is very small, light, and well-designed for easy transport to the track.

This universal Set-up Station will fit all standard 1/10 electric and nitro touring cars.

Set-up Station is used for measurement and adjustment of:
- Camber & camber gain
- Caster
- Front and rear toe
- Steering throw symmetry

Main features:
- Must-have set-up tool for a complete suspension geometry adjustment
- Quick and straight-forward "one screw" assembly/disassembly
- Backlash-free, wobble-free mounting
- Fully ball-bearing equipped set-up stands (12 high-precision ball-bearings)
- Ultra-smooth, ultra-precise movement and operation
- CNC-machined from high-grade premium Swiss 7075 T6 aluminum
- CNC-machined upside measure plate form tough acrylic plastic
- All components have prevision engraving for instant & reliable readings
- Carrying box with foam inserts for safe storage & transportation
- High-quality, super precision & long life
- Industry standard for set-up tools since 1992

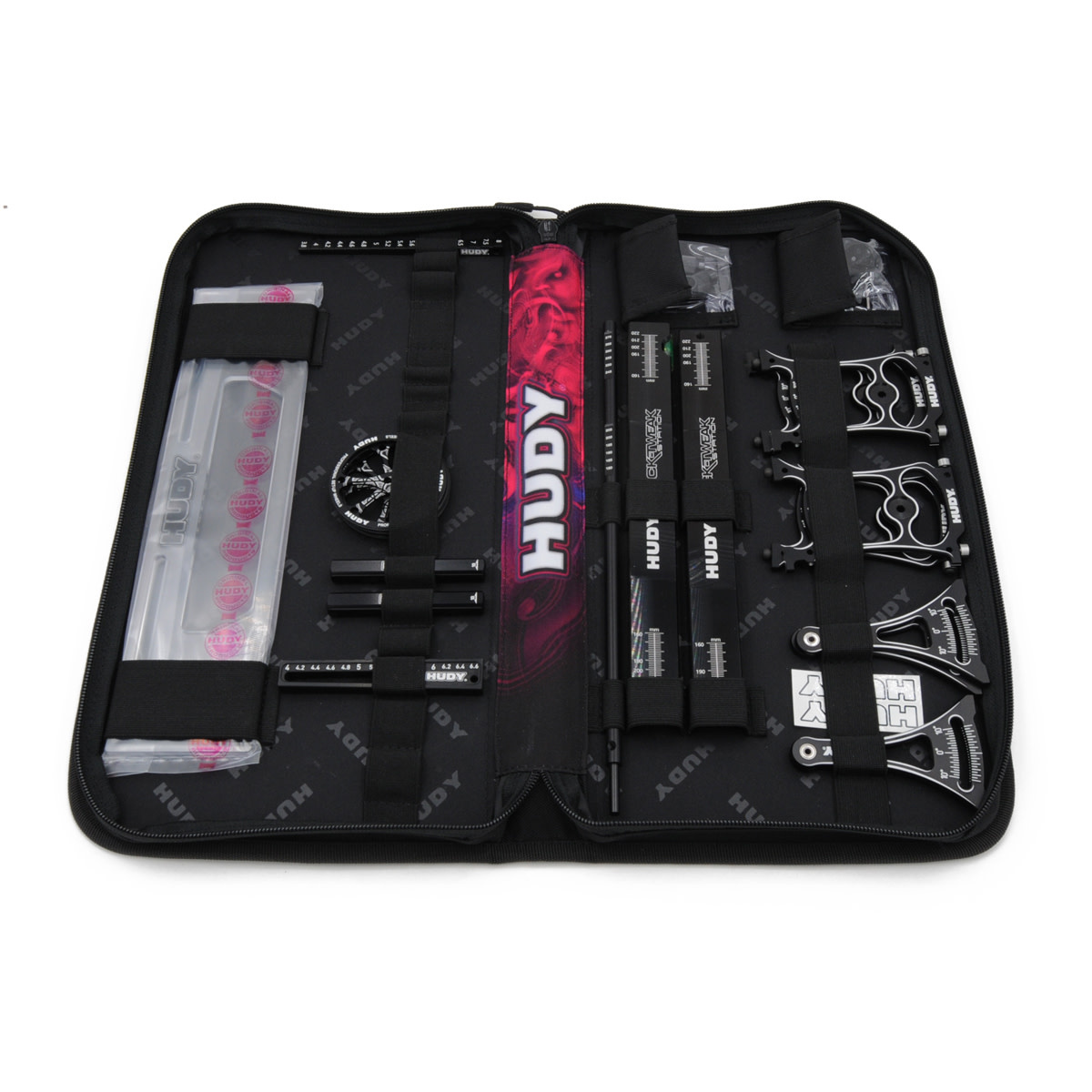

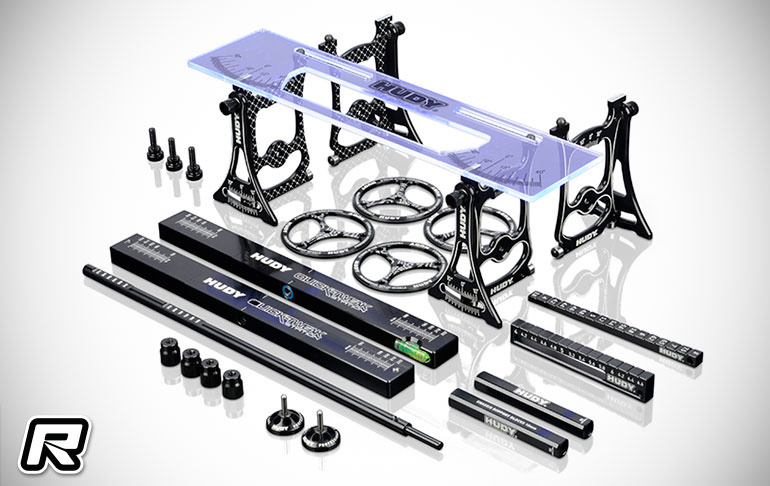

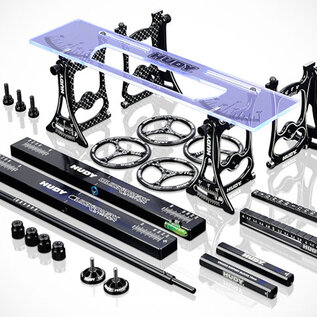

Includes:
- 1 (109301) set-up stands & camber gauges (triangular) with installed ball-bearing (4)

- 1 (109340) Upside Measure Plate for 1/10 Touring Cars

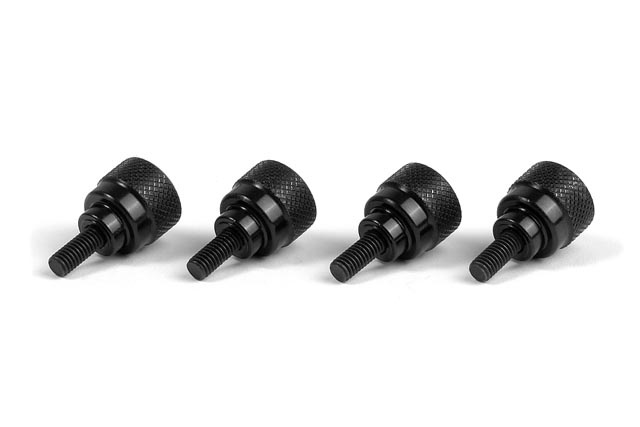

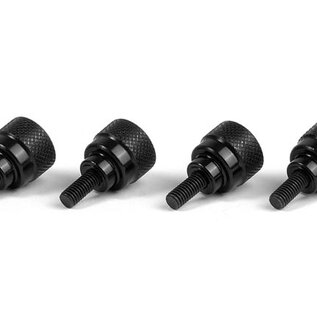

- 1 (108060) Aluminum Set-up System Assembly Nuts (4)

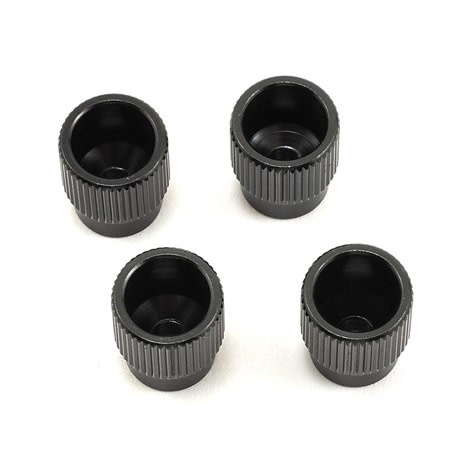

- 1 (109360) 4mm wheel nuts Alu Nut for 1/10 Touring Set-up System (4)

- 1 (107904) Quick-Tweak Station 1/10 & 1/12 On-Road

- 1 (107714) Ultra-Fine Chassis Droop Gauge 4.0-6.6mm

- 1 (107702) Chassis Droop Gauge Support Blocks for 1/10 (2)

- 1 (109370) Aluminum Set-up Wheel for 1/10 Touring Rubber Tires (4)

- 1 (107716) Ultra-Fine Chassis Ride Height Gauge 3.8-8.0mm

- 1 (199221) HUDY Set-Up Bag 1/10 Touring

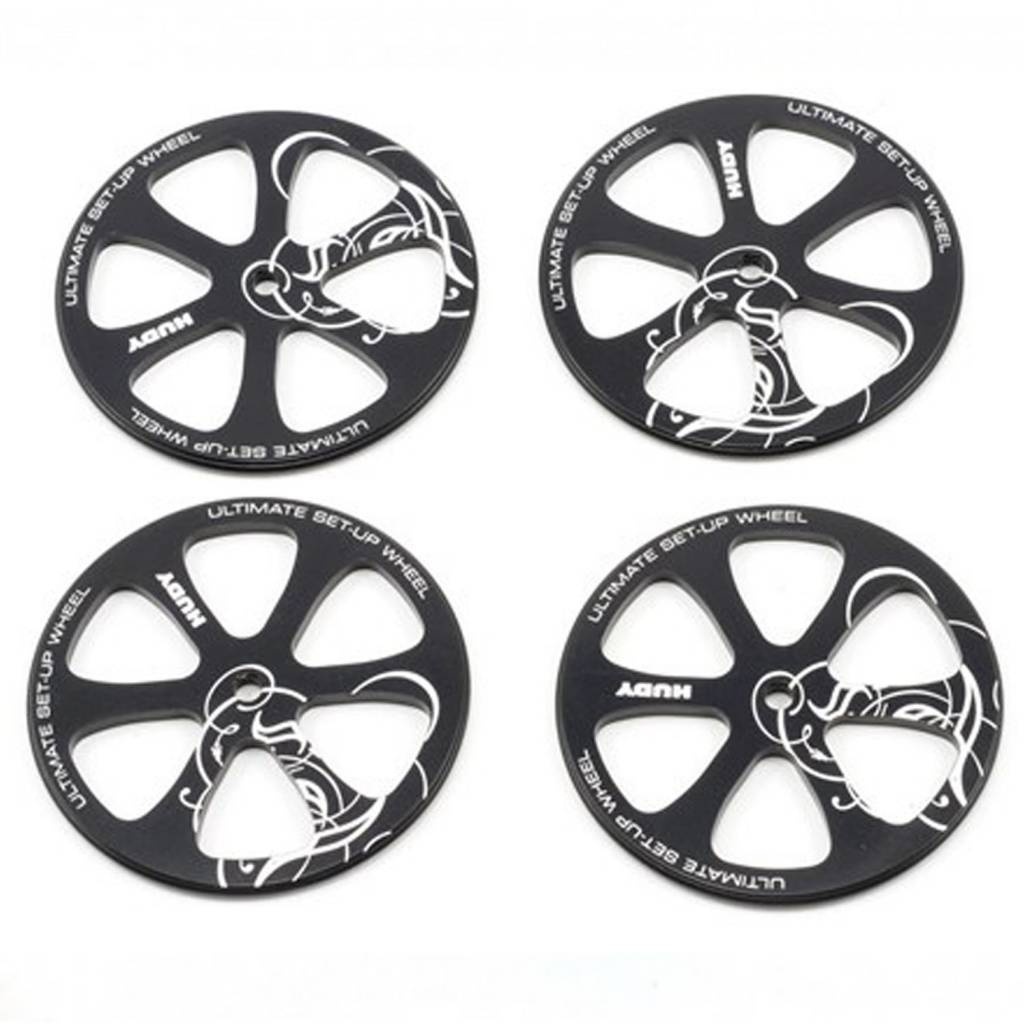

CNC-machined premium-quality aluminum set-up wheels for electric and nitro 1/10 touring cars allows for perfect, precise and repeatable set-up adjustment and tweak correction. Eliminates the errors inherent in using standard rubber tires or foam tires. Precision-machined to exacting tolerances, each alu set-up wheel in a set is perfectly matched.

When checking tweak on a rubber-tired touring car, using standard rubber tires typically gives non-precise and non-repeatable measurements. Rubber tires are never perfectly rounded, so when checking tweak one tire can lift earlier than another but this does not always indicate a tweaked car. Tire roundness and insert weight is different from one tire to the next.


	Correct tweak is one of the most important concerns that influences the overall performance of the car; a badly tweak car has a very negative impact on a car's handling. As such, checking and correcting tweak is a very important matter; pro racers check for tweak a number of times after each run.

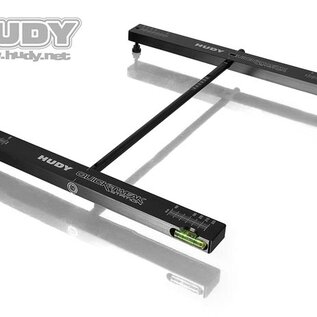

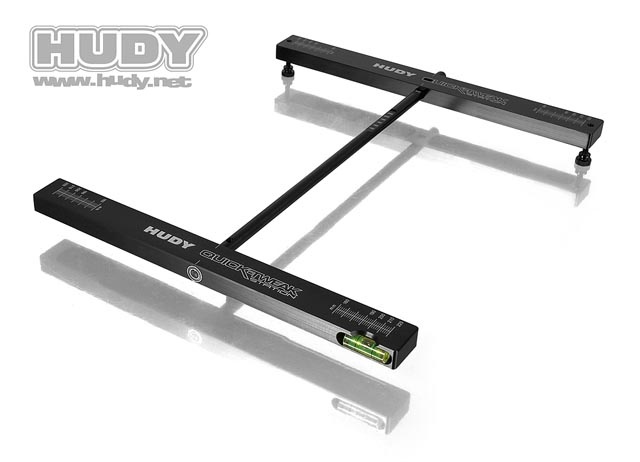

The HUDY Quick-Tweak Station allows you to quickly and easily check and correct tweak on your race car to help ensure proper, consistent handling.

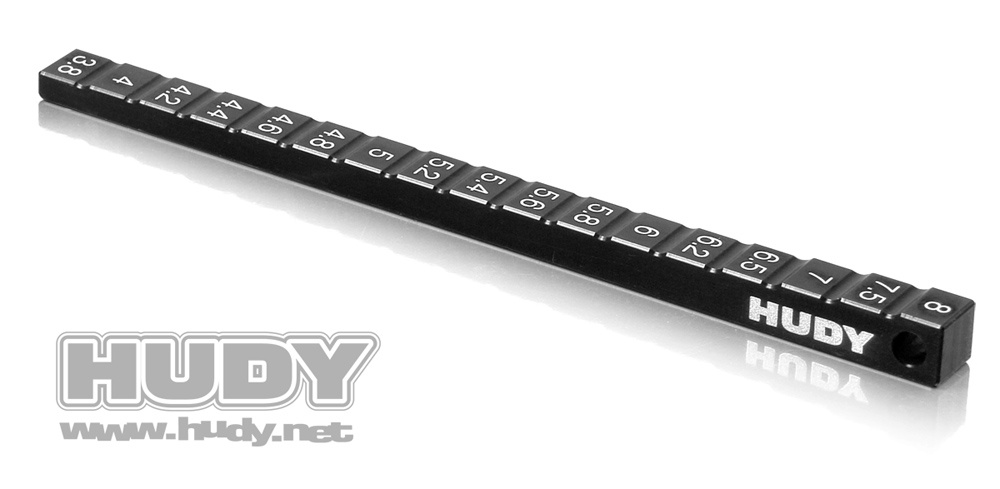

• chassis ride height gauge for 1/10 nitro and electric touring cars
• allows ultra-fine and very precise adjustment of front/rear ride height
• ride height range (3.8-8.0mm) within most frequently used ride height settings
• super-precise increments of 0.2mm in the most frequently-used range (standard ride height gauges typically use 1.0mm increments)
• CNC-machined, high-quality lightweight duraluminum
• elox-coating for smooth, long-lasting finish
• fine-engraved HUDY logo and scale
• scale engraved on top of steps for easy viewing and use
• most precise ride height gauge on the market
• a "must have" for professional racers

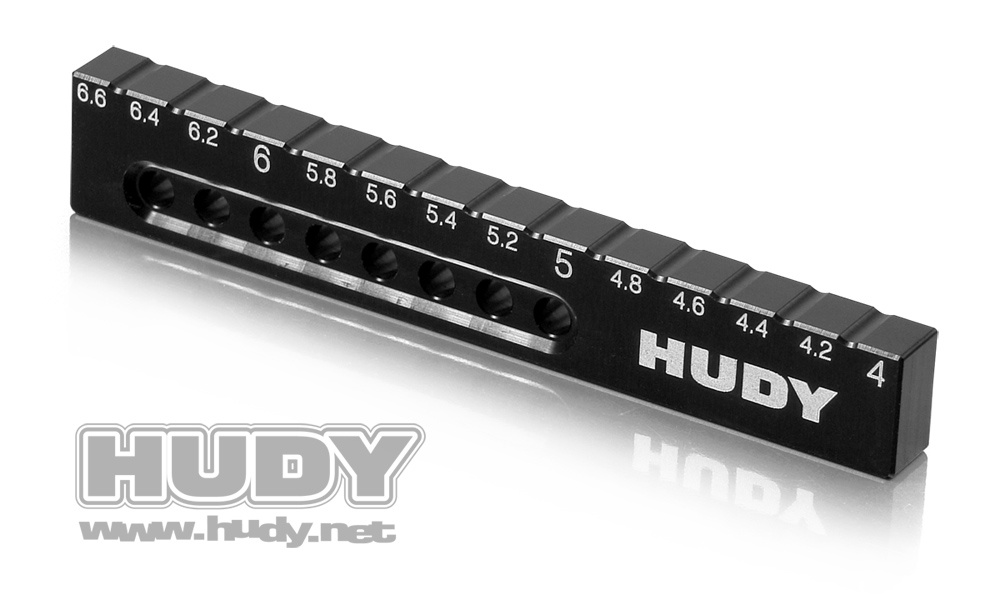

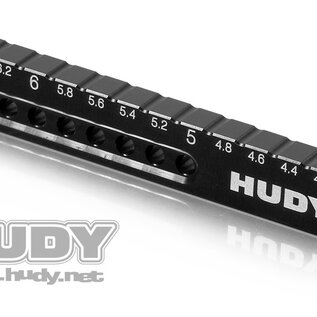

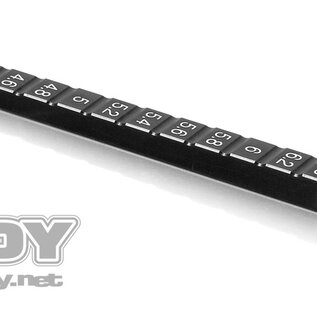

• chassis droop gauge for 1/10 nitro and electric touring cars
• allows ultra-fine and very precise adjustment of front/rear droop
• droop range (4.0-6.6mm) within most frequently used settings
• super-precise increments of 0.2mm (standard droop gauges typically use 1.0mm increments)
• CNC-machined, high-quality lightweight duraluminum
• elox-coating for smooth, long-lasting finish
• lightened sides for more comfortable grip
• fine engraved HUDY logo and scale
• scale engraved on both sides for easy viewing and use
• most precise droop gauge tool on the market
• a "must have" for professional racers
• must be used with #107702 Chassis Support Blocks for 1/10

click to enlarge

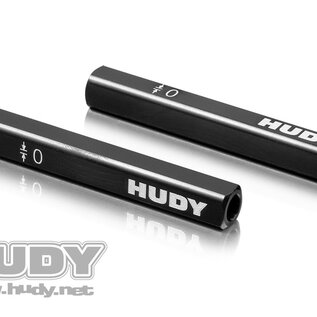

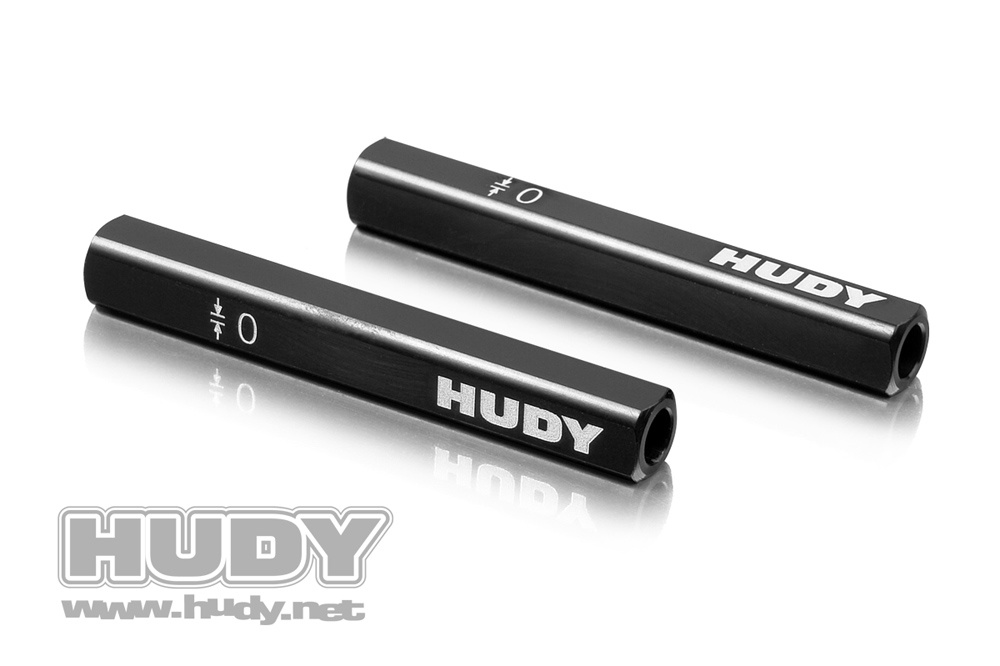

• chassis droop gauge support blocks for 1/10 cars
• 2 pcs in a set
• allows adjustment of front/rear droop when used with #107712 Chassis Droop Gauge for 1/10
• CNC-machined, made of high-quality lightweight duraluminum
• elox-coating for smooth, long-lasting finish
• engraved with HUDY logo
