HS-7954SH Dig HV Ultra Torque Servo 403 Oz/In 0.12 [email protected]
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | HRC37954S |
HRC37954S

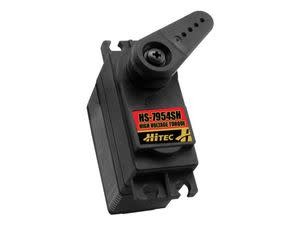

HS-7954SH Digital High Voltage Ultra Torque Servo, 403 Oz/In 0.12 [email protected]
The HS-7954SH could be considered the most economical high voltage, high torque, coreless servo on the market. Based on the ultra popular HS-7955TG, the HS-7954SH has the added benefit of our high voltage coreless motor. With 403 inch ounce of torque at 7.4 volts, the HS-7954SH is fast too with a 0.12 second transit time when operating on a 2 cell LiPo pack. The HS-7954SH harnesses all this power by utilizing a heavy duty case that incorporates an aluminum heat sink, hardened steel gears, and two strong steel gear pins nested in brass axial bushings. Put it all together and you get one tough high voltage servo at a price that can't be beat.
Features:
G2 Digital Circuit
HV Coreless Motor
Dual Ball Bearing Supported Output Shaft
Steel Gear Train (MK first gear)
Programmable Features
Dead Band Width
Direction of Rotation
Speed of Rotation (slower)
End Points
Neutral Points
Fail Safe On/Off
Fail Safe Point
Resolution* (default is high resolution)
Overload Protection* (default is off)
*These features are only programmable with the HFP-20 field programmer.
Specifications
Motor Type: Coreless
Bearing Type: Dual Ball Bearing
Speed (6.0V/7.4V): 0.15 / 0.12
Torque oz./in. (6.0V/7.4V): 333 / 403
Torque kg./cm. (6.0V/7.4V): 24.0 / 29.0
Size in Inches: 1.57 x 0.78 x 1.45
Size in Millimeters: 39.88 x 19.81 x 36.83
Weight oz.: 2.30
Weight g.: 65.20
