HRC36956 Hitec D956WP D-Series Waterproof Metal Gear Digital Servo (High Voltage)

$104.99 Excl. tax

*AFFIRM Finance Offer Available on Total Purchases of $149 or More

Delivery time: Back in Stock Soon

Part Number:

HRC36956

HRC36956 Hitec D956WP D-Series Waterproof Metal Gear Digital Servo (High Voltage)

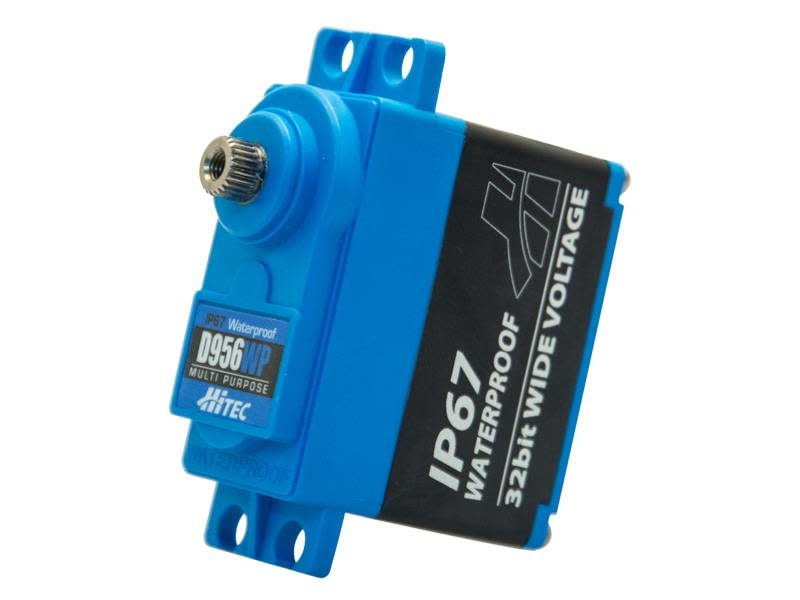

The Hitec D956WP D-Series Waterproof Metal Gear Digital Servo is based off the D954SW servo. This IP-67 rated version is the true waterproof, dust resistant upgrade for 1/10th-scale Off-Road models. As with the entire “D” line, this technologically-advanced servo is powered by Hitec's 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. The unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. With incredibly durable steel gears, dual ball bearing and hardened steel output shaft, the high-end performing D956WP produces the mighty torque and reliability required to take bashers to the next level.

Features:

Programmable PWM Digital Amplifier
32-Bit MCU with 12-Bit ADC Circuitry
4096 Resolution
1M Cycle Long Life Potentiometer
Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
Dual Ball Bearing Supported Output Shaft
25-Tooth Output Spline
Coreless Metal Brush Motors
Nylon Reinforced Plastic Upper and Lower Case
Diamond Cut Aluminum Heat Sink Center Case
Water Resistant and Waterproof Proof Case

Programmable Functions

End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset

Specifications:

Operating Voltage Range (Volts DC): 4.8V ~ 7.4V

Speed (Second @ 60°): 0.19 ~ 0.12

Maximum Torque Range oz. / in.: 251 ~ 405

Maximum Torque Range kg. / cm.: 18.0 ~ 29.0

Current Draw at Idle: 30 mA

No Load Operating Current Draw: 500 mA

Stall Current Draw: 5,200 mA

Dead Band Width: 1 µs

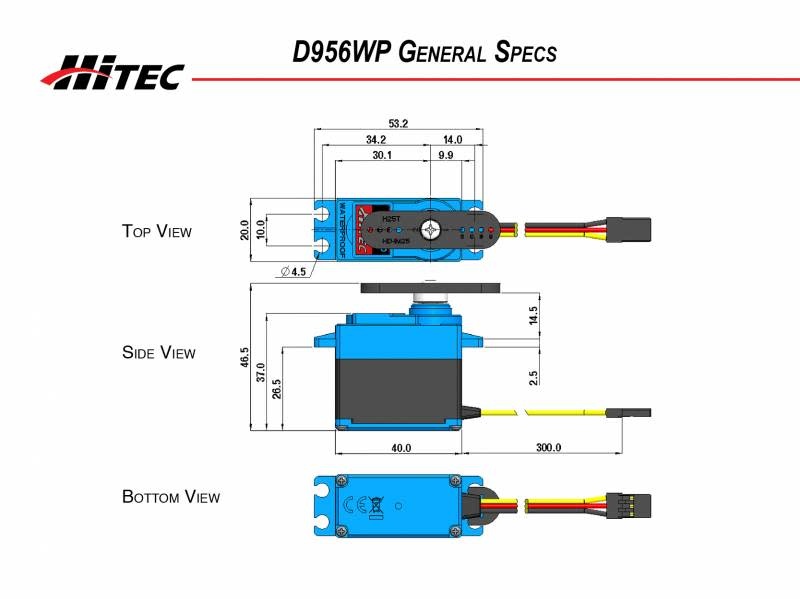

Dimensions (Inches): 1.57 x 0.78 x 1.46

Dimensions (Metric): 40.0 x 20.0 x 37.0

Weight (Ounces): 2.40

Weight (Gram): 68.0

Circuit Type: 32bit Programmable Digital

Motor Type: Coreless Metal Brush

Gear Material: MK 1st Gear & 3 Steel Alloy Gears

Bearing Type: Dual Ball Bearing

Output Shaft (type / Ømm): H25T

Case Material: Plastic / Aluminum

Dust / Water Resistance: IP67 Rating

Connector Gauge (AWG) / Strand Count: 20 / 80
