HRASTE256 32P 18T Steel Pinion & 56T Spur Gear Set (Purple) (HOT RACING)

HRASTE256 32P 18T Steel Pinion & 56T Spur Gear Set (Purple)
(Slash, Rustler, Stampede, Bandit)

This is an optional Hot Racing 32 Pitch Steel Pinion and Spur Gear Set for use with the following Traxxas 2WD models: Bandit, Rustler, Slash and Stampede.

Features:

• CNC machined and lightened hardened steel construction
• Replaces stock nylon spur gear
• Rugged 0.8 Module/32pitch teeth for total reliability on brushless power
• Aluminum pinion sleeve to allow for either 1/8 inch or 5mm motor shafts
• Black oxide coated gear for durability and corrosion resistance
• Purple anodized countersunk aluminum washers
• High strength hardware

Specifications:
Number of Teeth: 18T/56T
Gear Pitch: 32 pitch (0.8 module)
Mounting Holes: 3
Tooth Face width: ~5mm

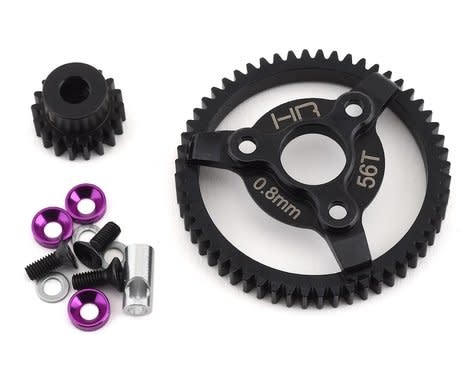

Includes:

• (1) 18 tooth 32 pitch (0.8 Mod) pinion gear
• (1) 56 tooth 32 pitch (0.8 Mod) spur gear
• (3) mounting screws
• (3) purple anodized countersunk washers
• (1) pinion adapter sleeve
• (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur backing plate)

NOTES:

• Consider using Hot Racing motor lock plate HRATE18L06 for secure motor mounting
• Motor should no way exceed 180F. ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.

• COMPATIBILITY
