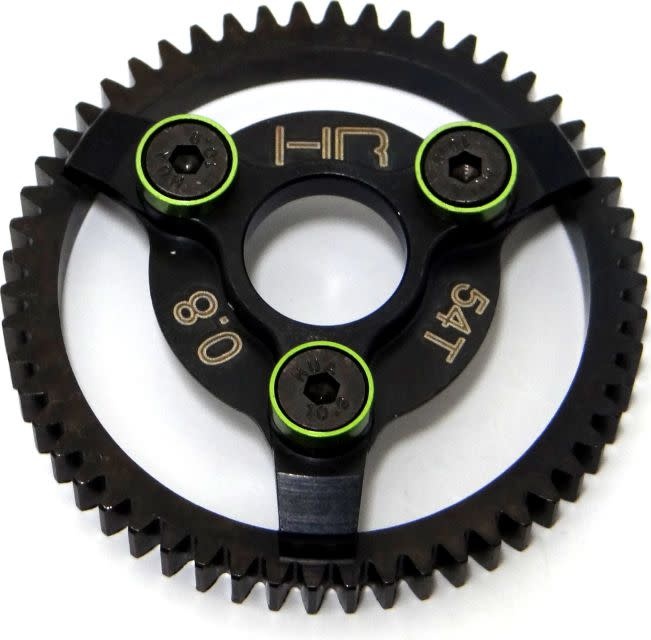

HRASTE254 Steel Spur Gear, 54 Tooth, 32 Pitch, Green, for Traxxas 2WD (HOT RACING)

HRASTE254 Steel Spur Gear, 54 Tooth, 32 Pitch, Green, for Traxxas 2WD

Hot Racing light weight hardened steel 54 tooth, 32 pitch (0.8 Mod) spur gear for the 1/10 Traxxas Bandit, Rustler, 2WD Slash, 2WD Stampede, and Telluride vehicles.

Comes with the following:
- One (1) 54 tooth 32 pitch (0.8 Mod) spur gear
- Three (3) mounting screws
- Three (3) green anodized countersunk washers
- Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur backing plate)


- Consider using Hot Racing motor lock plate TE18L06 for secure motor mounting
- Motor should no way exceed 180F. ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.

Features:

• CNC machined and lightened hardened steel construction
• Replaces stock nylon spur gear
• Rugged 0.8 Module/32pitch teeth for total reliability on brushless power
• Black oxide coated gear for durability and corrosion resistance
• Green anodized countersunk aluminum washers
• High strength hardware

Specifications:

• Number of Teeth: 54
• Gear Pitch: 32 pitch (0.8 module)
• Mounting Holes: 3
• Tooth Face width: ~5mm
