HRASD488P Hot Racing Pro Connector Soldering Jig (HOT RACING)

HRASD488P Hot Racing Pro Connector Soldering Jig

Hot Racing Pro Connector Soldering Jig.

Features:

• Ideal for soldering and all types RC connector
• This jig quickly and securely clamps, holds, and releases these connectors for your soldering tasks.
• This Jig clamp holds the most RC connectors
• XT60
• Deans T connector
• Traxxas connector
• EC-2 to EC-5
• Deans Micro 2pin to 4pin connectors
• Bullet connectors from 2 to 6.5 mm

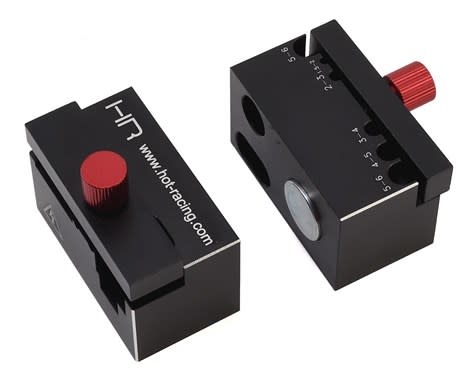

• Magnetic two piece design with alligator clips and solder storage
• Two alligator clips style holding clamps for wire.
• Wide Aluminum base for added stability
• Can be use as motor holder fit both 5mm and 1/8 motor shaft.

Soldering tip:
1) soldering iron must be very HOT!
2) Tin the wires and the connector pins with 60/40 electrical solder
3) Now place the wire and connector pin together with the help of a very hot soldering tip so the solder on both items melts
4) Then remove the soldering tip from the solder join, and let it cool done

Warning: Use care when soldering battery connectors. The open positive and negative wires could create a short circuit.

• Keep one of the wires properly isolated at all times.
• Only clamp on one pin at a time from the same battery.
