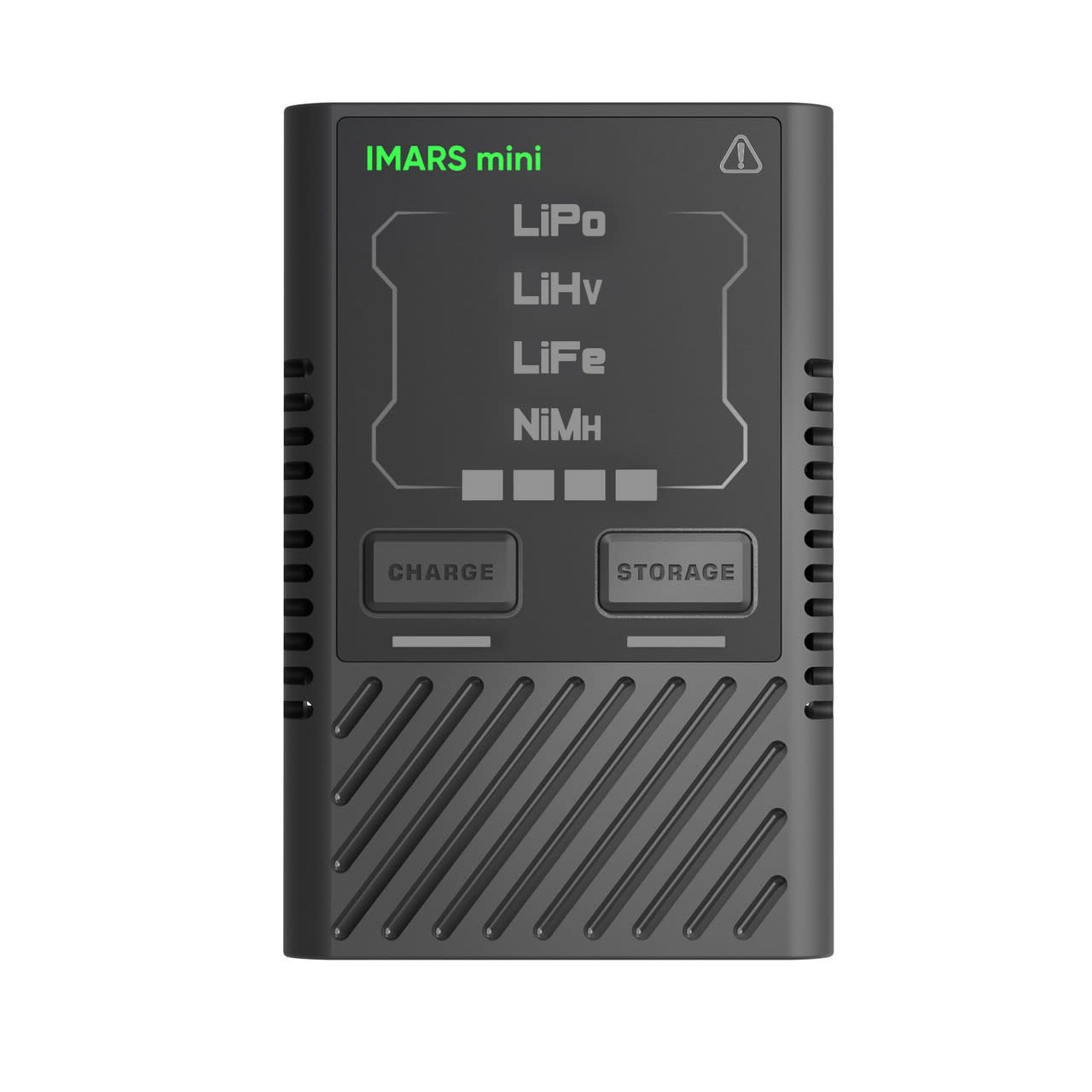

GEA60WC1 Gens Ace IMARS Mini G-Tech USB-C 2-4S 60W RC Battery Charger With Power Supply Adapter And Adpter Cable (Gens Ace)

GEA60WC1 Gens Ace IMARS Mini G-Tech USB-C 2-4S 60W RC Battery Charger With Power Supply Adapter And Adpter Cable

The Gens ace Imars Mini Charger is an Intelligent Charger designed for the Gens ace G-Tech smart battery, which is also compatible with non-smart batteries.

It is the first member of the Gens ace G-Tech Smart Eco, when the Gens ace G-Tech battery is connected to the Imars Mini charger, the charger will automatically identify the battery type, voltage through the smart balance connector, and charging current recommended by the battery manufacturer. The charger will start charging in 5 seconds automatically after G-Tech smart battery is connected.

For non-smart batteries, it's necessary to manually select the battery type and the required working mode to get it started. The charger can intelligently adjust the charging current according to the charging voltage flow of the battery.

Release Video:

Product Features:

1. Charges 2-4S LiPo, LiHV, LiFe, and 2-12S NiMH batteries.
2. Intelligently recognizes G-Tech smart battery info through an IC chip for safe and easy charging.
3. Automatic storage function, it's the smallest charger with auto storage.
4. New interface design and increased balance connector durability.
5. Small & lightweight, portable design.

Product Specifications:

1. Max. Charge Power: 60W
2. Charge Current:1-5A, Max. 5A(Auto Adjustment)
3. Max. Storage Power: 3W discharge, 60W charge
4. Input Voltage: 5-20V
5. Max. Input Current: DC 3A
6. Balance Current: 0.4A/Cell X 2
7. Input Port: QC/PD/BC1.2/USB-C V1.4/SDP/CDP/DCP/Apple 5V/2.4A(Does not support 5V/1A adapter input)
8. Abnormal Battery Voltage Alarm: Yes
9. Supported Battery Types: Lipo/LiHv/LiFe(2~4S), NiMH(2-12S)
10. Working Temperature: 0℃~40℃
11. Storage Temperature: -20℃~60℃
12. Dimension: 85*55*21mm
13. Net Weight: Approx. 64g

What's in the Box?

1. Imars Mini 60W Smart Charger * 1
2. 65W power supply adapter with USB-C cable* 1
3. XT60 female to EC3 male adapter *1
4. XT60 female to EC5 male adapter *1
5. Product Manual *1

G-Tech Eco Battery:

Gens Ace Advanced 5500mAh 7.6V 100C 2S1P HardCase Lipo Battery Pack

More Lipo Battery Smart Chargers, please click here. The Europe/UK versions are available in our EU Stores.

Our Advantage:

1.Your orders will be dispatched via FedEx or UPS from the USA directly.
2.Fast shipping and excellent local after-sale service guaranteed in the USA.
3.Service-priority in the online shop, like the long warranty period and the lower price.
4.Energy Density:Specially adapted to each UAV type and RC car/boat/heli type. Very High according to capacity/weight. In fact, we are specialists in High Power Lipo Batteries. It is our unique technology, the highest power of our battery is 120C. Another technology is our batteries are able to be stably discharged simultaneously.
5.Low IR: Provides stable voltage until the end of your mission.
6.Safety: Gens Ace and its partners fulfill the ISO9001, ISO14001, standards.
7.See the battery instruction to the link:Lipo Battery Guide

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information  go to www.P65Warnings.ca.gov.
