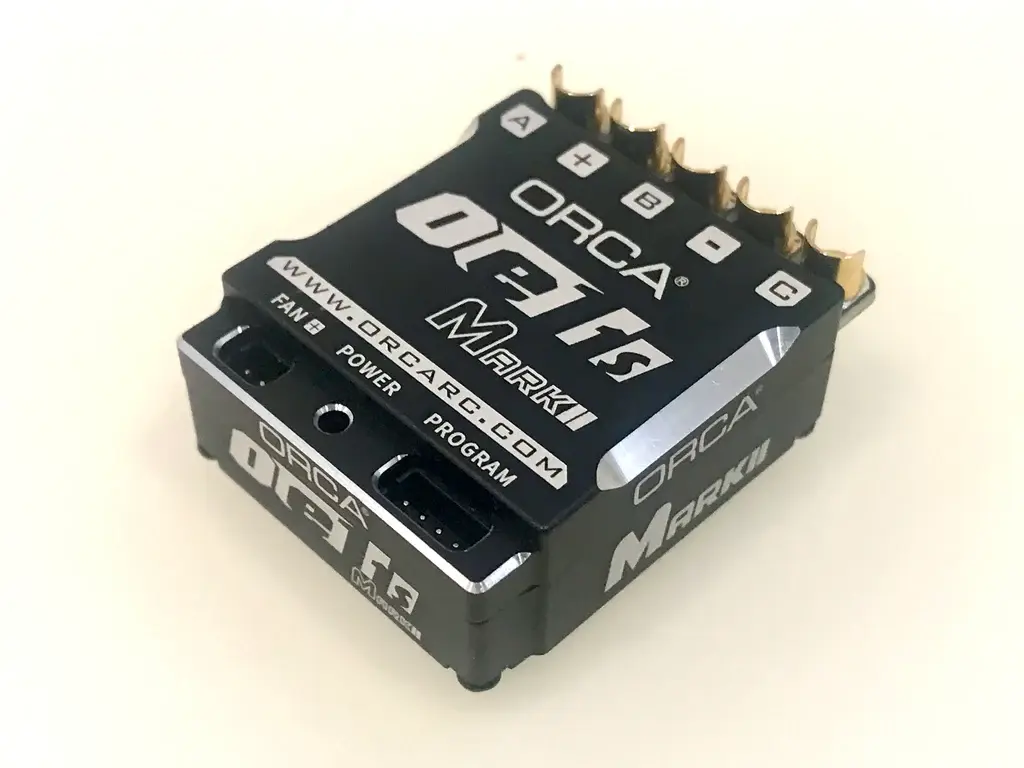

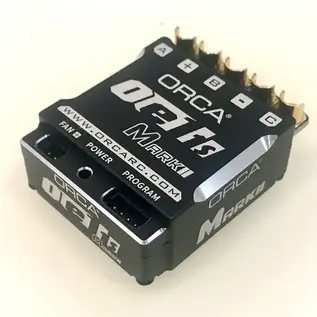

ES24OE1MK2 ORCA OE1-1S Mark II Competition ESC (ORCA)

ES24OE1MK2 ORCA OE1-1S Mark II Competition ESC, polar reverse potection, internal capacitor *NEW

Part# ES23OE11SM2

Features Highlight:
Polar Reverse Protection
Internal Capacitor
detachable on/off switch, ESC is always on when on/off switch disconnected
detachable receiver, ESC come with 200mm wire, optional 105mm and 300mm BEC wire available

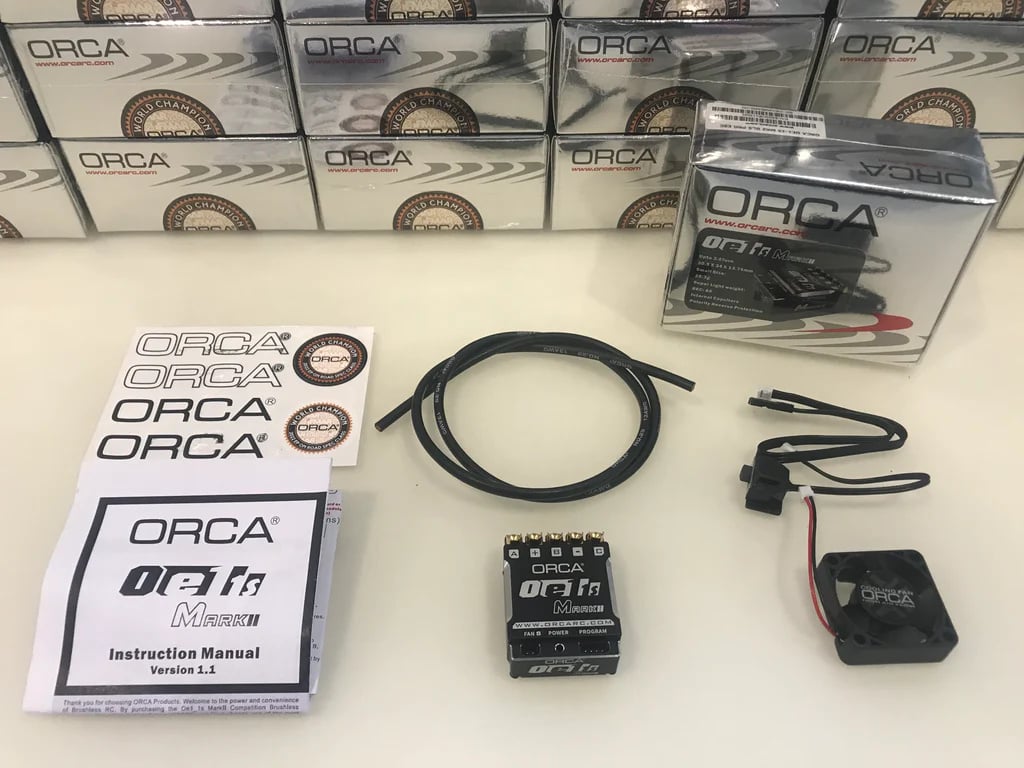

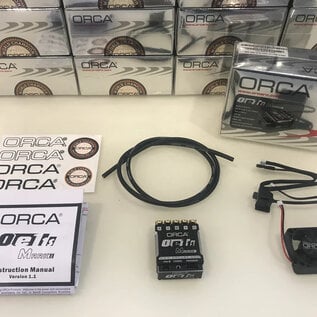

Package include
13awg wire
30mm fan
detachable on/off switch
200mm detachable BEC wire
ORCA Decals
Specifcations:
New CPU, Newly Design Circuit Board and Lower IR MOSFET
Brushless System
32 bit Processor
Multiple Adjustable Parameters by an optional Bluconn module via Android / iOS smart phone or by an optional program card
BEC : 8A 6V / 7.2V
Peak Current 760A
Continuous Current 160A
Motor limit 3.5T
Motor Type: Brushless sensored 540 size Motor
Voltage input : DC 3.7V – 4.4V
Dimensions : 30.54(L) x 34(W) x 13.75(H) mm
Weight : 29.3g excluding wires
