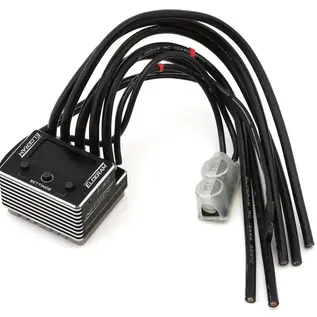

ELC020 Elceram G2 Nitride 1/10 Brushless ESC w/Color LCD Display
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | ELC020 |
| Quantity In Stock: | 4 |

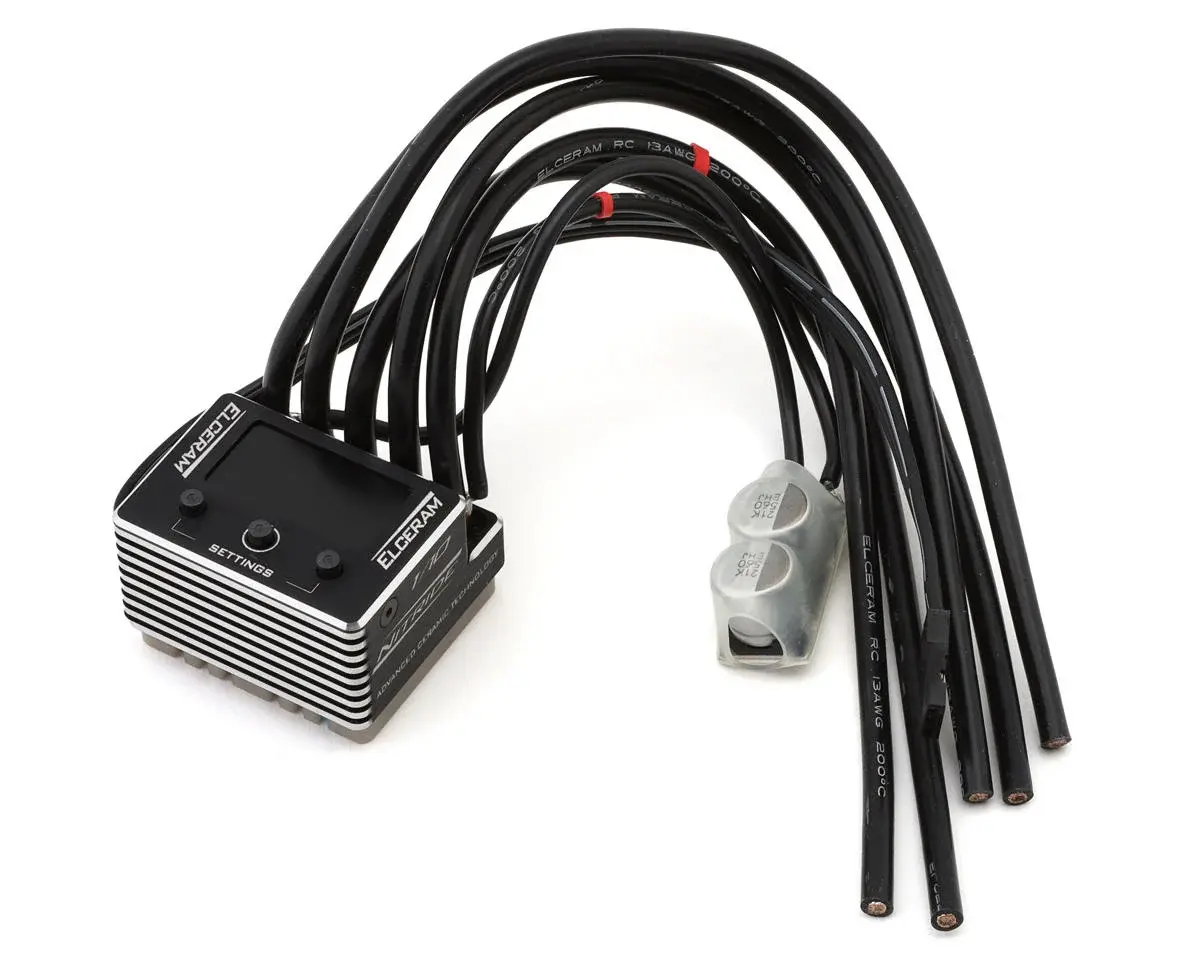

ELC020 Elceram G2 Nitride 1/10 Brushless ESC w/Color LCD Display
The Elceram G2 Nitride 1/10 Brushless ESC represents the next era in electronic speed controller design, combining cutting-edge technology, advanced materials, and intelligent functionality for serious RC racers. Built with an Aluminum Nitride Ceramic cooler, it delivers exceptional heat dissipation, ensuring consistent performance under extreme loads. The ESC integrates a high-resolution TFT LCD color display, giving users total control and visibility without the need for additional programming cards or apps. Designed for precision, reliability, and ease of use, the Nitride G2 sets the benchmark in performance electronics for 1/10-scale RC vehicles.
The G2 Nitride ESC uses Elceram’s proprietary Aluminum Nitride cooling system, designed for maximum thermal conductivity and long-term resistance to high temperatures. Its MOSFET transistors are cooled directly without any intermediary layers, providing superior efficiency and durability. Constructed using thick layers of copper and silver for low resistance, the ESC remains cool and consistent, even with high-power motors from 4.5T up. For additional temperature control, the G2 features aluminum fins and an Intelligent Fan connector for specialized conditions.
At the heart of the G2 Nitride ESC is a built-in TFT matte-surface LCD display, allowing users to monitor, configure, and fine-tune settings directly on the unit—no external interface or computer needed. With a resolution of 160x80 pixels and three easy-access buttons, racers can quickly adjust throttle, brake, boost, and turbo timing or review real-time diagnostics. This simple yet powerful design enables quick pre-race checks, mid-race monitoring, and post-race analysis with immediate feedback.
The G2 Nitride ESC features real-time data tracking, intelligent protection algorithms, and revolutionary discharge monitoring to ensure safe, optimal operation. The system continuously monitors battery voltage, ESC and motor temperatures, motor diagnostics, and other key parameters to prevent damage from overloads or mechanical issues. With pre-race diagnostics, adjustable maintenance reminders, and reverse polarity protection, the G2 ensures dependable performance and long-term reliability in any racing environment.
