ECP-120S EcoPower WP120S Coreless Waterproof High Speed Metal Gear Digital Servo (High Voltage) - Michael's RC Hobbies

ECP-120S EcoPower WP120S Coreless Waterproof High Speed Metal Gear Digital Servo (High Voltage) (Eco Power)

ECP-120S EcoPower WP120S Coreless Waterproof High Speed Metal Gear Digital Servo (High Voltage)

$69.99 Excl. tax

*AFFIRM Finance Offer Available on Total Purchases of $149 or More

Delivery time: Ships within 24hrs
Part Number: ECP-120S
Quantity In Stock: 2

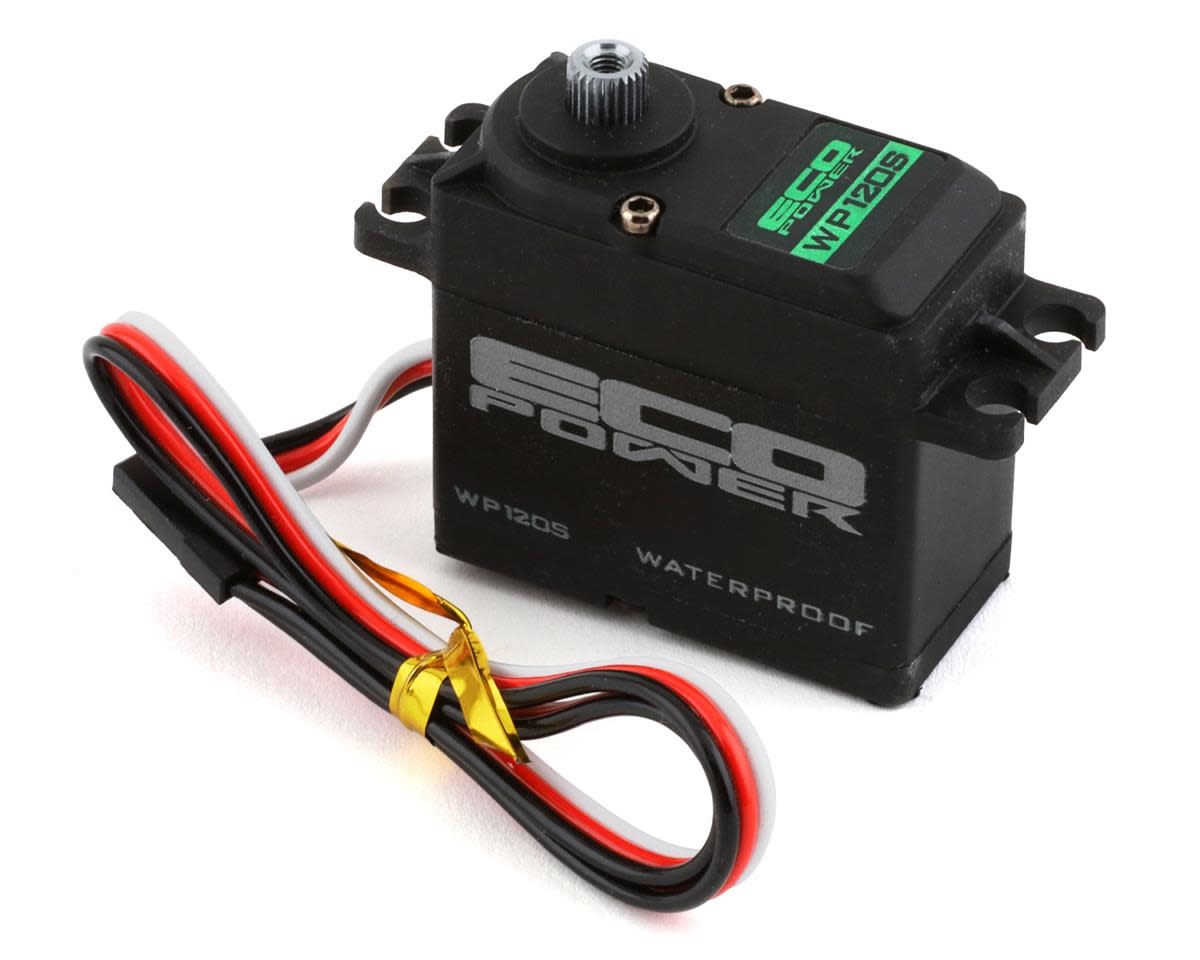

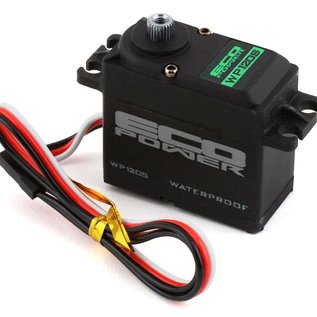

ECP-120S EcoPower WP120S Coreless Waterproof High Speed Metal Gear Digital Servo (High Voltage)



The EcoPower WP120S Cored Waterproof "High Speed" Metal Gear Digital Servo is a great option if you are looking for an affordable, waterproof RTR servo upgrade. This high speed version of the EcoPower WP120T cranks out 360 oz-in of torque at 7.4V, with 0.07sec/60°! This makes it a great choice for 1/10 bashing, 1/10 racing, 1/8 scale, RC boat and even RC airplane applications.

The WP120S is waterproof up to 1-meter so driving in the rain, puddles, snow and mud are not an issue. Metal gears were used to create a durable gear train that is easily serviced, and the plastic case with aluminum center section keeps the servo running cool while remaining lightweight. Plus, the digital circuitry allows compatibility with vehicles that use traction control/gyro systems, making the WP110S a viable option for models that are equipped with a stability system. Want more? We back it with a 1 year warranty - so grab a handful of throttle and drive with confidence knowing that the weather is not going to slow you down.



Features:

  • Affordable option for 1/10 trucks, 2WD and 4WD 1/10 buggies, boats and more!

  • Waterproof up to 1 meter

  • 360 oz-in of torque @ 7.4V, and .07 transit speed

  • Digital circuitry

  • Coreless Motor

  • Metal gears

  • Lightweight plastic upper and lower case w/black anodized aluminum center case

  • Dual ball bearings

  • 220mm servo lead

  • Includes plastic star, 4 way, dual, single and round arm type servo horns and mounting hardware

  • 1 Year warranty against manufacturer defects*

*NOTE: Warranty does not cover stripped gears or damage caused by abuse.









Servo Model

WP120S

Recommended Application

1/10 Scale Surface

Waterproof

Yes

Operating Voltage

6.0V - 8.4V

Operating Temperature

14° to 140° F (-10 to +60° C)

Operating Speed @ 6.0V

0.09/60° sec

Operating Speed @ 7.4V

0.07/60° sec

Dynamic Torque @ 6.0V

285 oz-in (20.5 kg-cm)

Dynamic Torque @ 7.4V

360 oz-in (25.9 kg-cm)

Motor Type

Coreless

Output Shaft

25 Tooth

Gears

Full Metal

Weight

53g

Pulse/Frequency

1520Us / 333hz







NOTE: Be sure to set your End Point Adjustments when using this servo to ensure long life and performance. For more information on End Point Adjustments,
