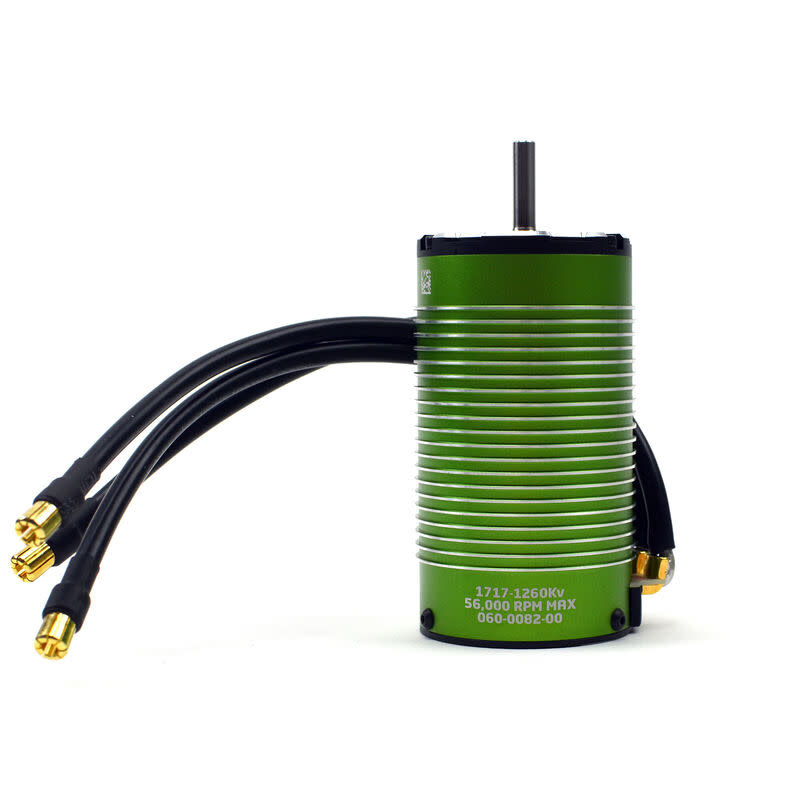

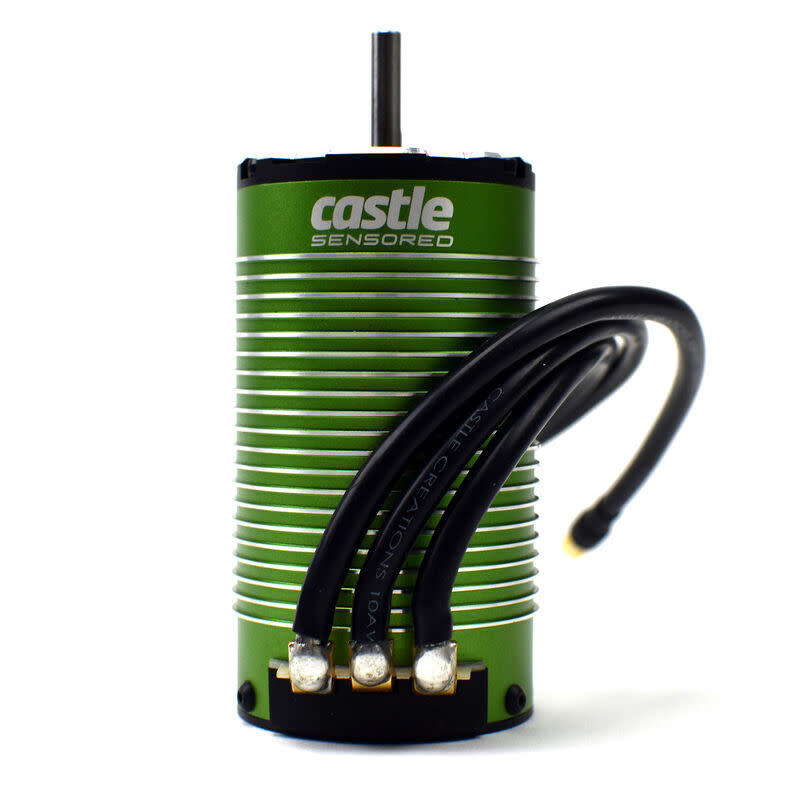

CSE060-0082-00 1717-1260Kv 4-Pole Sensored Brushless Motor (Castle Creations)

CSE060-0082-00 4-Pole Sensored Brushless Motor 1717-1260Kv

$234.95

$185.95 Excl. tax

*AFFIRM Finance Offer Available on Total Purchases of $149 or More

Delivery time: Ships within 24hrs

Part Number:	CSE060-0082-00
Quantity In Stock:	2

CSE060-0082-00 4-Pole Sensored Brushless Motor 1717-1260Kv

4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
Proprietary stator winding produces low internal resistance for a cooler running motor
Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty

Adjustable Timing	Yes
Application	1/6 scale vehicles weighing up to 20lbs runnning up to 8S LiPo, Upgrade for heavier 1/8 scale, and lighter 1/6 scale vehicles
Battery Connector	None
Connector Type	6.5mm Bullet
Input Voltage	3-8S LiPo
Motor Design	Inrunner
Motor Type	Brushless
Number of Poles	4
Outer Diameter	1.87" (47 mm)
Product Length	3.35" (85 mm)
Product Weight	21.08oz (597.6g) with wires
Recommended Speed Control	Castle Creations Mamba Monster X 8S 33.6V
RPM/Volt (Kv)	56,000/1260Kv
Shaft Diameter	0.196" (5 mm)
Voltage	7.4 - 33.6V
Water-Resistant	Yes
