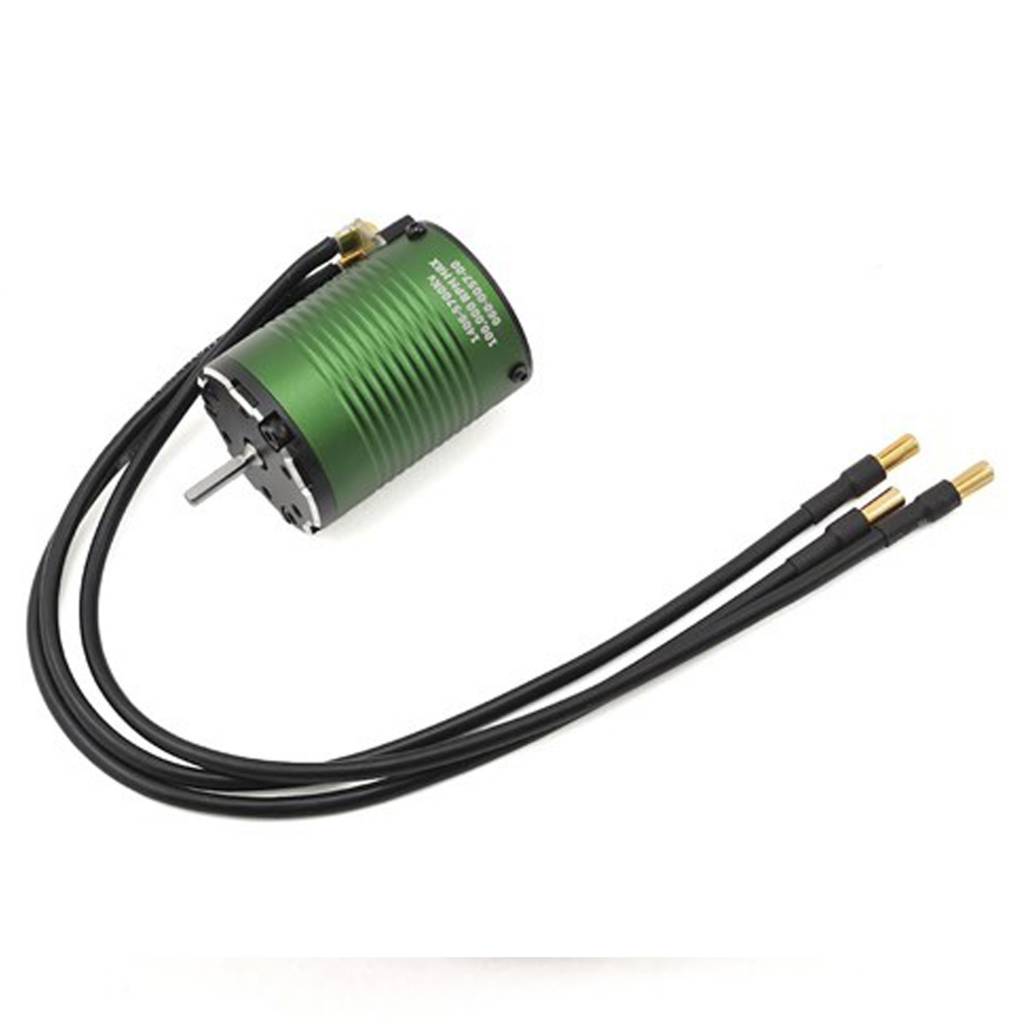

CSE060-0058-00 1406 Sensored 4-Pole Brushless Motor (6900kV)
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | CSE060-0058-00 |
| Quantity In Stock: | 1 |
CSE060-0058-00 1406 Sensored 4-Pole Brushless Motor (6900kV)
| Technical Specs | |
|---|---|
| Input Voltage Range: | 2S LiPo |
| Kv: | 6900 |
| Max. RPM: | 100,000 |
| Size: | Length: 49.5mm Diameter: 36mm |
| Weight (w/wires): | 193g / 6.8oz |
| Shaft Size: | Length: 15mm Diameter: 1/8" (3.17mm) |
| Mounting Hole Specifications: | M3 @ 25mm |
| Cooling Fan: | Optional - coming soon! |
| Connectors: | 4mm male Castle Bullet Connectors |
| Items Needed for Operation: | Compatible Electronic Speed Control (ESC) |
| Application Guidelines: | Ideal for 1/10th scale on-road cars for 2s use. Lighter off-road 1/10th stadium trucks and buggies with conservative gearing. NOT for use in 2WD or 4WD short course trucks. Check the gearing chart at the bottom of the page under Resources for more details. |
| Recommended ESC(s): | Mamba Max Pro, Mamba X |
| Max. Recommended Vehicle Weight: | Up to 4lbs |
| Tech Notes: |
Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs. |
