CSE011-0165-00 Castle Creations 8S CapPack 1680UF Capacitor Pack (35V) (Castle Creations)

CSE011-0165-00 Castle Creations 8S CapPack 1680UF Capacitor Pack (35V)

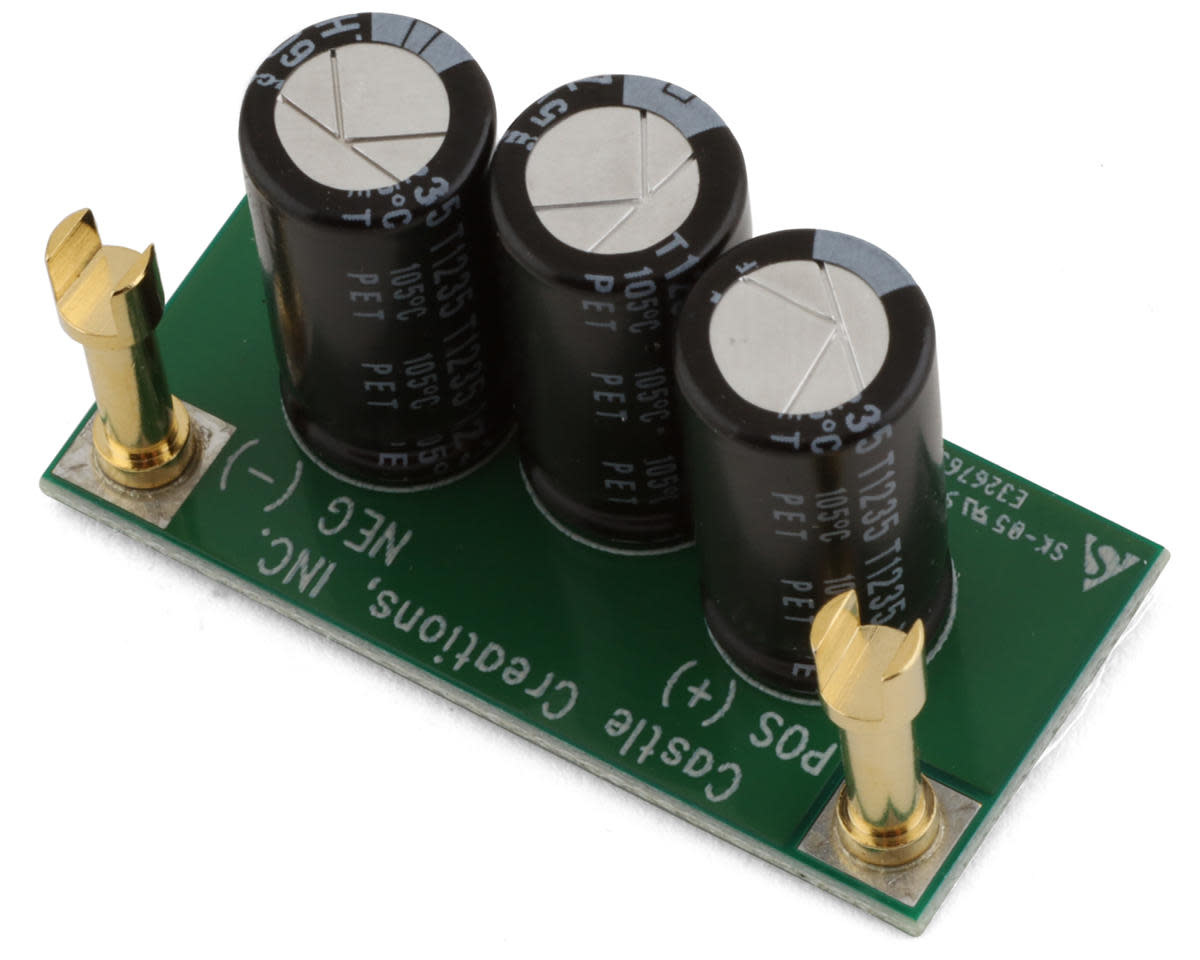

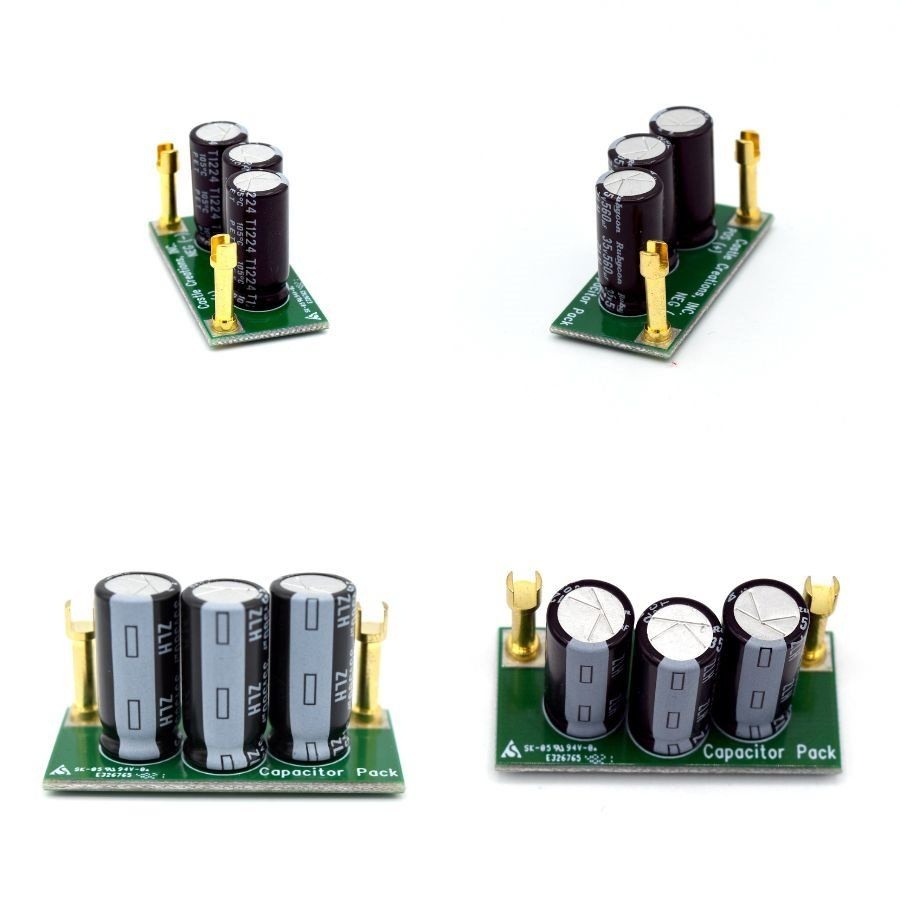

This is the Castle Creations 8S CapPack 1680UF Capacitor Pack. The Castle Creations 8S CapPack 1680UF capacitor pack is useful in all high voltage brushless motor applications. Ripple voltage is hard on an ESC, and one of the leading causes of ESC failure. This cap pack helps by providing that little boost needed to overcome ripples in the battery voltage caused by hard acceleration or long battery wires, helping to reduce the load on the controller's on-board capacitors. This CapPack uses three 560µF, 35V capacitors totaling 1680µF, which increases its ripple reducing capabilities. It can be used with up to 8 cells LiPo batteries. If your batteries are greater than 8s (35V) then you will need the 880µF, 50V CapPack. Multiple CapPacks of the same type and voltage may be used in an application and should be installed to the battery wires as close to the ESC as possible.

All Castle controllers with data logging capabilities can report the ripple voltage they encounter during use. Ripple voltage peaks should always be less than 10% of the total pack voltage; the smaller the ripple voltage the better. If an application exhibits more than 10% ripple voltage under peak loads, the user should consider using higher discharge (C Rating) batteries, shorter wires, higher current connectors, better gearing or a smaller load.

Note: See the Cap Pack installation guide in the resources tab above.

Applications:

• Surface Vehicles: With their high torque requirements – going from 0 to 100% throttle isn't easy on controllers or batteries - RC cars and trucks put enormous loads on brushless power systems. Use CC CapPacks in high performance applications (IE drag racing and high speed runs) to help your system power through the abuse
• Helis: CC CapPack is highly recommended for all 500 class and smaller heli applications where Y harnesses and long wires can bleed voltage, and hard collective pulls can strain even the most powerful batteries
• Fixed Wing Aircraft: Larger electric power systems lead to larger electric powered aircraft, and sometimes the distance between the battery pack and the ESC grows beyond the length of the wires installed on the components. Adding wire also adds inductance, which can increase the ripple voltage in a system. CC CapPack essentially negates the ripple caused by the addition of up to 12 inches of length to the battery wires

Specifications:

• Length: 1.66in (42.2mm)
• Width: 0.78in (19.9mm)
• Height: 0.88in (22.4mm)
• Weight: 0.464oz (13.15g)
• Capacitance: 1680µF total
• Voltage Range: 5V - 35V
