Part Number: |
CSE010-0166-04 |

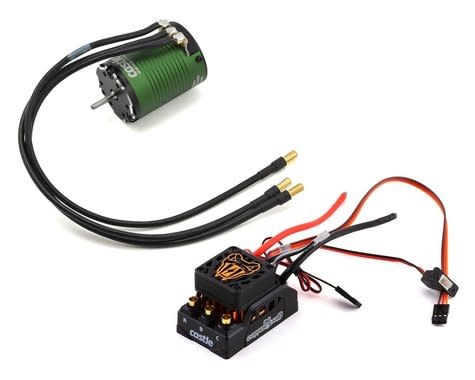

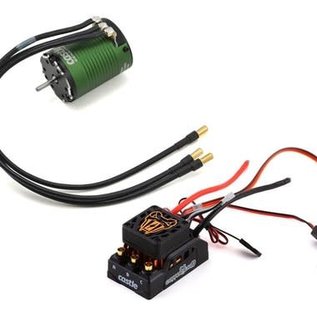

CSE010-0166-04 Copperhead 10 Sensored Combo w/ 1406 7700kv On-Road Edition
The Castle Creations Copperhead 10 Waterproof 1/10 Sensored "On-Road Edition" Combo provides 1/10 scale enthusiasts of all disciplines with a powerful and performance driven ESC that is packed with features. The Copperhead 10 is an affordable option that sits directly in the middle of the Sidewinder 4 entry-level upgrade ESC and the extreme performance MAMBA X option. The Copperhead 10 utilizes CRYO-DRIVE technology, sensored motor support and data logging to deliver Castle’s signature performance and reliability. Whether crawling the rocks, bashing in the backyard or ripping up the local skatepark, Copperhead 10’s versatility will appeal to a wide variety of 1/10 scale enthusiasts.
This combo includes a Castle 1406-7700Kv sensored motor. The 1406-7700kv motor is a great upgrade for 1/10th scale on-road cars for 2s use. It can also be used in some lighter off-road 1/10th stadium trucks and buggies with conservative gearing. NOT for use in 2WD or 4WD short course trucks.
Features:
Specifications:
Recommended Motors: Castle 1406, 1410, 1412 and 1415 Series Sensored 4-Pole Brushless Motors
Running Modes: SMARTSENSE™, Sensored Only and Brushed motor operation
Input Voltage Range: 2s-4s (16.8V)
BEC Specifications: Selectable: 5.5V or 7.5V (6A peak)
Operating Environment: Waterproof design, potted in durable injection molded case, allows or use in nearly any environment.
Data Logging: Yes, Data Log Lite with 5 data points. Sample frequency of 1 and 5 per second.
Connector Type: 4mm female bullets for motor connection
On/Off Switch: Yes
Cooling Fan: 30mm removable fan included, operates from start up. Purchase also includes a dual use fan guard for use without fan.
Size: 2.19x1.39x1.33" (L x W x H with fan)
Weight: 70.9 g / 2.50 oz. (with fan)
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
Needed to Complete:
- Battery Connector - Castle 4mm polarized connectors, XT60, Dean's Ultra Plug, or Traxxas Power Connector recommended.
Product Use Statements:
- Although COPPERHEAD 10 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt.
- Remove cooling fan prior to driving in wet conditions, it is not waterproof.
