CSE011-0068-00 6.5 mm Polarized Connectors Male Multi-Pack
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | CSE011-0068-00 |
| Quantity In Stock: | 3 |
CSE011-0068-00 6.5 mm Polarized Connectors Male Multi-Pack
Green Means GO!

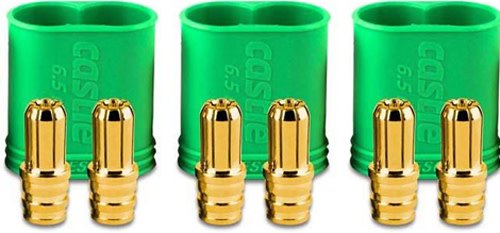

Polarized Castle Connectors are high quality, high current polarized connectors specifically made for the demands of electric RC. Perfect for use with batteries, ESCs, charger leads, parallel and series harnesses, high current amp/watt meters, and anything else that needs extremely high current.
This package includes 6 female connectors, and 3 housings.
Features:
| Technical Specs | |
|---|---|
| Connector Size: | 6.5mm |
| Dimensions: | Combined: 0.91" (23mm) x 1.19" (30.22mm) x 0.52" (13.3mm) Female: 0.91" (23mm) x 0.89" (22.5mm) x 0.52" (13.3mm) Male: 0.91" (23mm) x 0.94" (23.9mm) x 0.52" (13.3mm) |
| Weight: | 6F/3H Combined: 0.35 oz. (18g) |
| Max wire gauge: | 8 AWG |
| Max amps: | 200A continuous |
