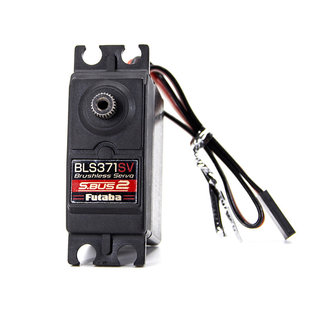

BLS371SV 01102224-3 S.Bus2 Nitro Car Programmable HV Servo

BLS371SV– S.Bus2 High-Voltage Surface Servo

Programmable Car Servo (01102224-3)

SPEED:
0.13 sec/60°at 6.0V
0.10 sec/60° at 7.4V

TORQUE:
15.8 kgf/cm at 6.0V
219.5 ozf/in at 6.0V
19.0 kgf/cm at 7.4V
263.9 ozf/in at 7.4V

SIZE:
40 mm x 20 mm x 36.8 mm
1.57 in x 0.79 in x 1.45 in

WEIGHT:
63 g
2.22 oz

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.0-8.4V

NO DRY BATTERY USE

FEATURES:

• Brushless motor Optimized for use with a glow powered RC vehicle
• Futaba S.BUS2 system can be connected to a PC using the CIU-2 USB adapter PC Interface (not included sold separately, FUTM0951) to change various operating characteristics

INCLUDES:

• Futaba BLS371SV Servo with Wire Lead, Connector, 1.7" (44mm) T-shaped Horn, two Rubber Dampers, four Eyelets, 3x8mm Horn Mounting Screw

SPECIFICATIONS:

• 6.0V 7.4V
• Speed: 0.13 @ 60° 0.10 @ 60°
• Torque: 219.5 oz/in (15.8 kg/cm) 263.9 oz/in (19.0 kg/cm)
• Rated Voltage: 6.0- 7.4V DC
• Operating Voltage: 4.0 - 8.4V DC
• Dimensions: 1.57 x 0.79 x 1.45" (40 x 20 x 36.8mm)
• Weight: 2.22oz (63g)
• SBus Programmable Defaults
• Dead Band Degree: 0.25
• Damper Factor: 80
• Stretcher Gain: 4
• Boost: 10
• Neutral Offset Degree: 0
• Travel Adjust Percentage: 100%
• Reverse (Normal/Reverse): Nor
• Stop Mode (Free/Hold): Free
• Buzzer (On/Off): Off
• Smoother (On/Off): On
• Boost (On/Off): Off
