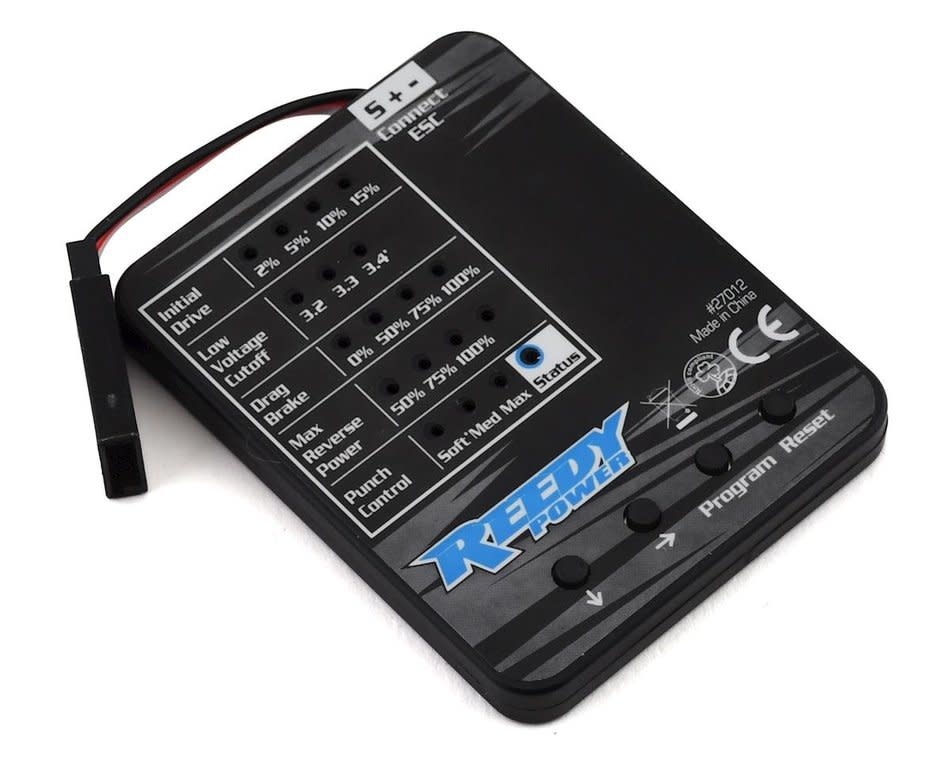

ASC27034 Reedy SC480X Program Card
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | ASC27034 |
| Quantity In Stock: | 1 |
ASC27034 Reedy SC480X Program Card
The pre-programmed default ESC settings work very well in most situations, but if you want access to additional settings for fine-tuning, you can do so using optional Program Card (#27034). The following settings can be changed using the Program Card:
Initial Drive: Throttle applied the moment the trigger is moved from the neutral position to the throttle range.
Low-Voltage Cutoff: The cell voltage at which the ESC will shut off to protect the battery.
Drag Brake: The brake force applied when the throttle trigger is returned to the neutral position.
Max Reverse Power: The maximum reverse speed allowed relative to the forward speed.
Punch Control: The aggressiveness of the application of throttle.
| HEADER: | Setting / Value |
|---|---|
| Initial Drive: | 2%, 5%*, 10%, 15% |
| Low Voltage Cutoff (V/cell): | 3.2, 3.3, 3.4* |
| Drag Brake: | 0%, 50%, 75%, 100%* |
| Max Reverse Power: | 50%, 75%*, 100% |
| Punch Control: | Soft*, Medium, Strong |
| HEADER: | *Default setting |
