A12-AFS AFS Adjustable Front Suspension Set
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | A12-AFS |
A12-AFS AFS Adjustable Front Suspension Set
The optional A12-AFS set is our next-generation front suspension system for the A12X / A12WC platforms.
Its main advantage: you can adjust caster, camber, ride height and droop with the front wheels installed - without changing any shims, caster posts or any disassembly.
Important: The A12-AFS set cannot be used with the standard C1205X or C1201X components.
Key Feature:
- Full front-end tuning without removing the wheels.
- Faster, cleaner adjustments compared to traditional 1/12 pan-car suspensions.
- Compatible with standard 1/12 setup stations or an angle gauge for camber.
- Camber range: ±1.75°
- Selectable caster angles: 3°, 4°, 5°, 6°
- Stepless ride-height adjustment
- Stepless downstop adjustment
Compatibility & Required Parts:
Servo plate and suspension plates are not included.
To run the AFS system, choose the correct AFS suspension plates + a matching AFS servo plate for your needs/conditions.
Suspension / Servo plate pairing:
- C1205AFS → use with C1201AFS
- C1205AFS-1.5 → use with C1201AFS-1.5
- C1205AFS-5.0 → use with C1201AFS-5.0

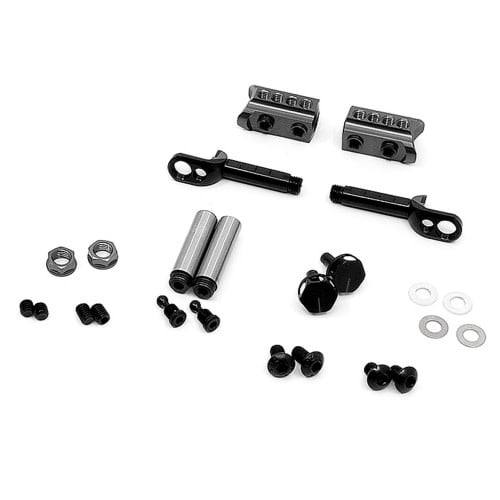

contains:
2pcs ST1220
2pcs ST1263
2pcs ST1267
2pcs ST1268
2pcs AT1216
2pcs DT1215
2pcs SH0.5
2pcs SH0.25
2pcs SB3X4
2pcs SB3X5
2pcs SS3X3 DIN913
2pcs SS3X4 DIN913
