(…) (…) 2430-6300Kv 2S Mini Motor 2.0mm Shaft 3.5mm Connector 1/16, 1/18 - Michael's RC Hobbies

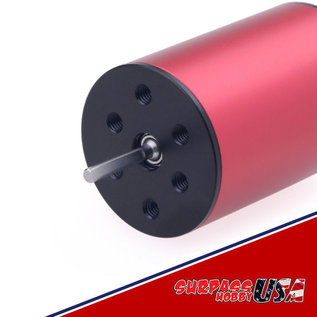

2430-6300Kv 2S Mini Motor 2.0mm Shaft 3.5mm Connector 1/16, 1/18 (Surpass Hobby USA)

2430-6300Kv 2S Mini Motor 2.0mm Shaft 3.5mm Connector 1/16, 1/18

Part Number: 2430-6300
Quantity In Stock: 1
SHIPS FROM THE USA!

Excellent Up Grade for the Team Losi Mini-T 2.0, Mini-B, and the Losi Mini JRX2 running a Brushless ESC.

Features:
  • 4 Pole 12 Slot Hi-Torque Motor Design.
  • High Quality: CNC Machined 6061 T6 Aluminum Billet Heat Sink Can, High Purity Copper Windings Maximize Efficiency, High RPM ABEC5 Oversized Bearings.
  • Universal fit, for 1:16,1:18 2s rc racing car.
  • Motor Mounting Holes for M2.5 or M3 Screws
  • Precision balanced rotor, smoothness for better reliability and maximum rpm.
  • Super thin stator-laminations (0.35mm).

Specifications:
  • Series: KK 2430
  • Color: Red
  • Kv: 6300kv
  • Watt: 200
  • Max RPM: 60,000
  • Maximum voltage: <8.4v / 2 Cell Lipo
  • Max amps: 24A
  • Rotor poles: 4
  • Diameter: 24mm
  • Length: 30mm
  • Shaft: 2.0mm
  • Shaft length: 12mm
  • Connector: 3.5mm gold
  • Weight: 45g

Recommended ESC: KS-300003-02 35A ESC Brushless Waterproof Electric Speed Controller
