| Part Number: |
108164-1 YLW |
PRE-ORDER Available for In-Store Pick-Up Friday, August 29th

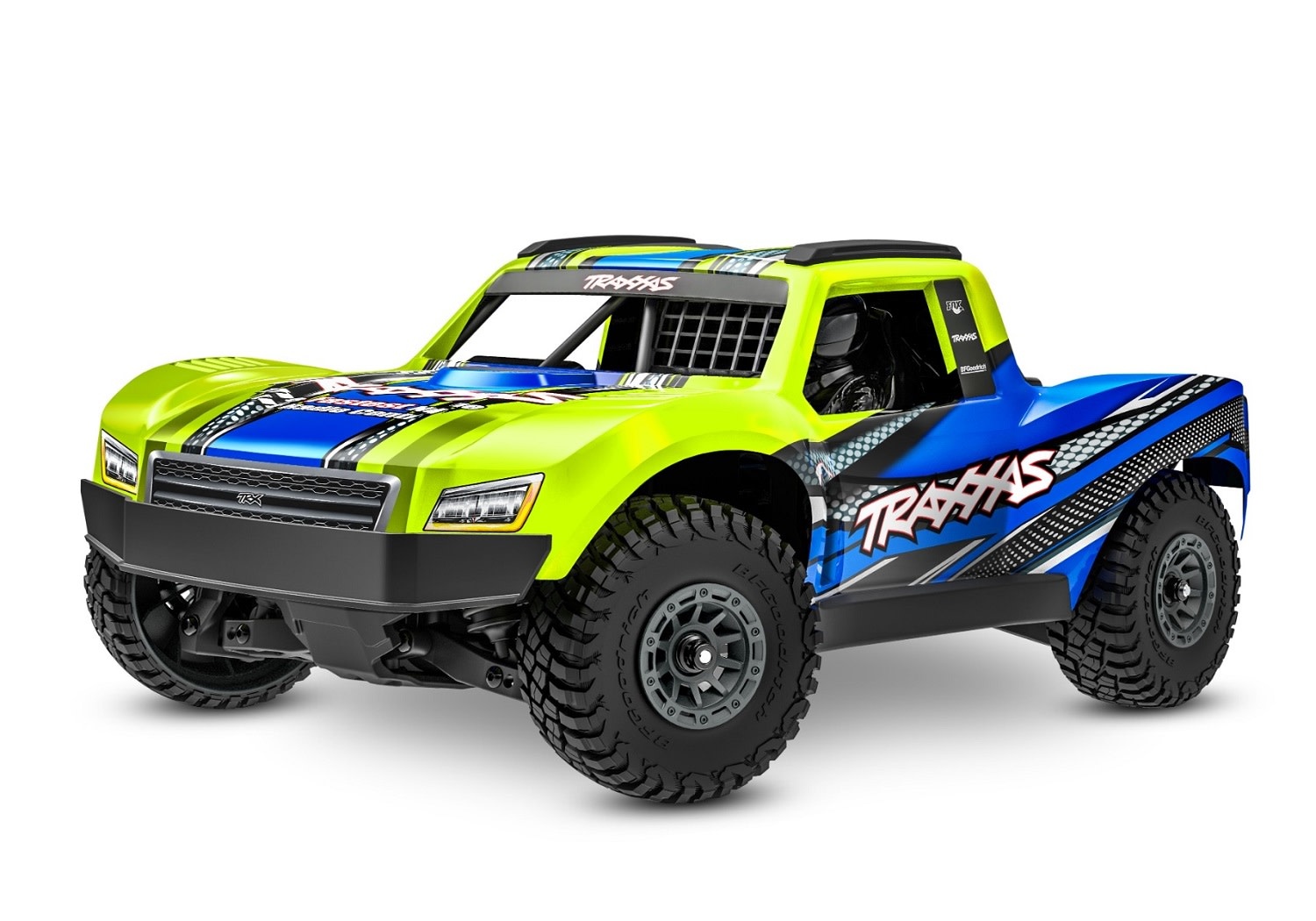

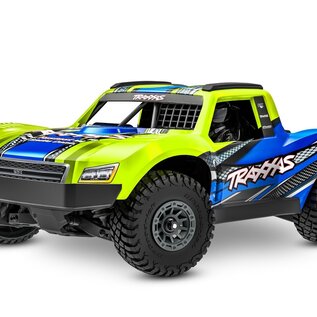

108164-1 YLW Traxxas Mini Slash 4X4 Yellow
- 30+ mph Top Speed
- BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three programmable drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection
- BL-2s™ Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 Kv
- Battery and Charger Included
- High-capacity 2-cell LiPo battery
- 7.4 volts
- 3500 mAh for extended run time
- 2-amp USB-C charger
- iD® technology for faster, safer charging
- TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
- Clipless Body
- Realistic injection-molded interior
- Driver figure and replica netting
- Integrated cooling channels for ESC and motor
- Quick and easy installation and removal
- Nerf bar channels for side body support
- Reinforced for extra protection against tearing
- 1/10 Scale 4X4 Driveline
- Full-time shaft-driven 4-wheel drive
- 1/10 scale extreme-duty telescoping driveshafts
- Direct drive (no transmission)
- Fixed gear mesh system
- Large 32-pitch gears
- Sealed planetary steel-gear differentials
- Fixed gear mesh system
- New Extended Mini Chassis
- Modular chassis with interlocking front and rear bulkheads
- Longer 235 mm wheelbase
- Absorbs and distributes impact energy
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt
- Easy Battery Access
- Battery is protected deep in the chassis
- Modular strap with removeable spacer for tall batteries
- Battery hold-down pivots for easy access
- More secure than conventional retention systems
- Steering
- 1/10 scale 2056 waterproof high-torque servo
- Heavy-duty double-shear bellcranks
- Cam-operated servo saver
- Suspension
- Heavy duty, double-shear suspension arms
- Dual wishbone design
- Extra tough outer suspension components
- Oil-Filled Ultra Shocks™
- Same construction as 1/10 shocks
- Large oil capacity
- Easy to tune
- Bumpers and Skid Plates
- Full-width front bumper
- High-angle front skid plate
- Rugged interlocking skid plates
- Smooth undertray eliminates snags
- Integrated nerf bars for side impact resistance
- Wheels and Tires
- Licensed BFGoodrich® Mud Terrain™ T/A® KM3 tires
- Internal ribbed design with no foam inserts
- High-traction rubber compound
- Replica Maxx Slash wheels
- Hex Hardware with Rust-Resistant Black Oxide Coating
- Sealed Ball Bearings
MODEL SPECS
| Model Name: |
Mini Slash 4X4 |
| Model Type: |
Short course truck |
| Top Speed: |
30+ |
| Skill Level: |
1 |
| Scale: |
Mini |
| Length: |
16.06 inches (408 mm) |
| Width: |
8.46 inches (215 mm) |
| Height: |
5.63 inches (143 mm) |
| Weight: |
3.62 pounds (1.64 kg) |
| Track: |
7.28 inches (185 mm) |
| Wheelbase: |
9.25 inches (235 mm) |
| Ground Clearance: |
1.06 inches (27 mm) |
| Drivetrain: |
Shaft-driven 4WD |
| Transmission: |
Direct drive |
| Differential Type: |
Planetary, steel gear |
| Gear Pitch: |
32 |
| Servo: |
2056 |
| Radio System: |
TQ 2.4 GHz (2-channel) |
| Battery Compartment Specs: |
113 mm L x 41 mm W x 22 mm H |
MOTOR SPECS
| Motor Name: |
BL-2s 3300 Kv |
| Motor Type: |
Sensorless brushless |
| Motor Weight: |
7.51 ounces (213 g) |
| Motor Length: |
3.15 inches (80 mm) |
| Motor Diameter: |
1.42 inches (36 mm) |
| Motor Shaft Size: |
3 mm |
| Motor Connector Type: |
Traxxas Quick Connect Motor Plug
|
ESC SPECS
| ESC Name: |
BL-2s Electronic Speed Control |
| ESC Type: |
Brushless |
| ESC Case Size: |
1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| ESC Weight: |
3.07 ounces (87 g) |
| BEC Voltage: |
6 volts |
| Thermal Protection: |
Two-stage thermal shutdown |
| Ports: |
Auxiliary fan |
| Battery Connector: |
Traxxas High-Current Connector |
MODEL MODEL 108164-1: Mini Slash 4X4: 4WD short course truck, fully assembled, Ready-To-Race®, with TQ™ 2.4 GHz radio system, BL-2s™ brushless power system, and clipless painted body. Includes 2-cell LiPo battery and 2-amp USB-C charger.
What’s In The Box:
- Mini Slash Ready-To-Race short course truck
- BL-2s Brushless Power System
- 3500 mAh 2-cell LiPo battery
- 2-amp USB-C charger
- Quick Start Guide
- TQ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
