101177-4 FOXSE Ford Raptor R 4X4 Ultimate
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | TRA101177-4 FOXSE |
Unleash brutal 4S brushless power and Pro Scale® realism with the Traxxas Ford Raptor R 4X4 Ultimate, packed with over $550 in premium upgrades, this beast delivers high-speed thrills, extreme durability, and show-stopping detail right out of the box.

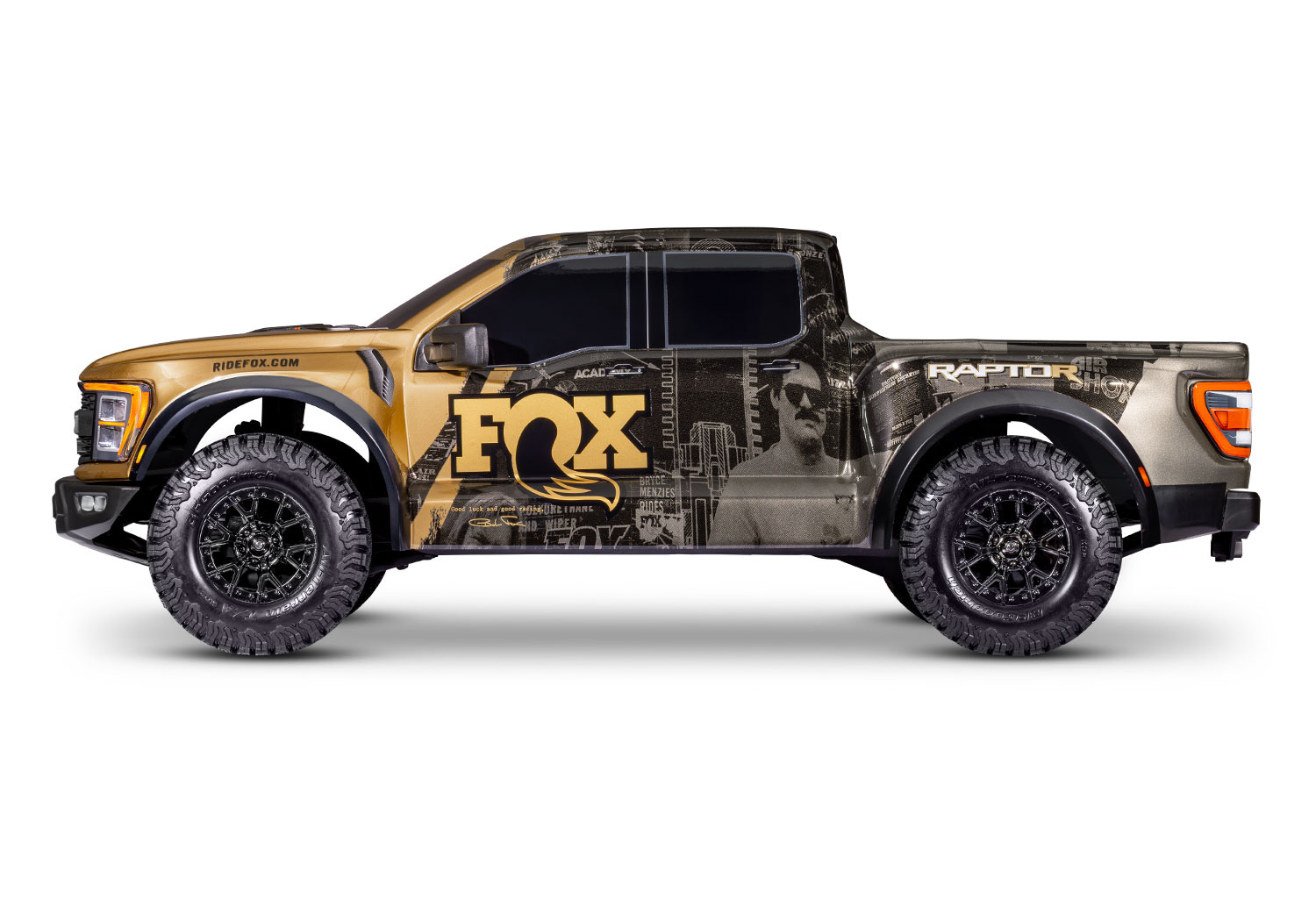

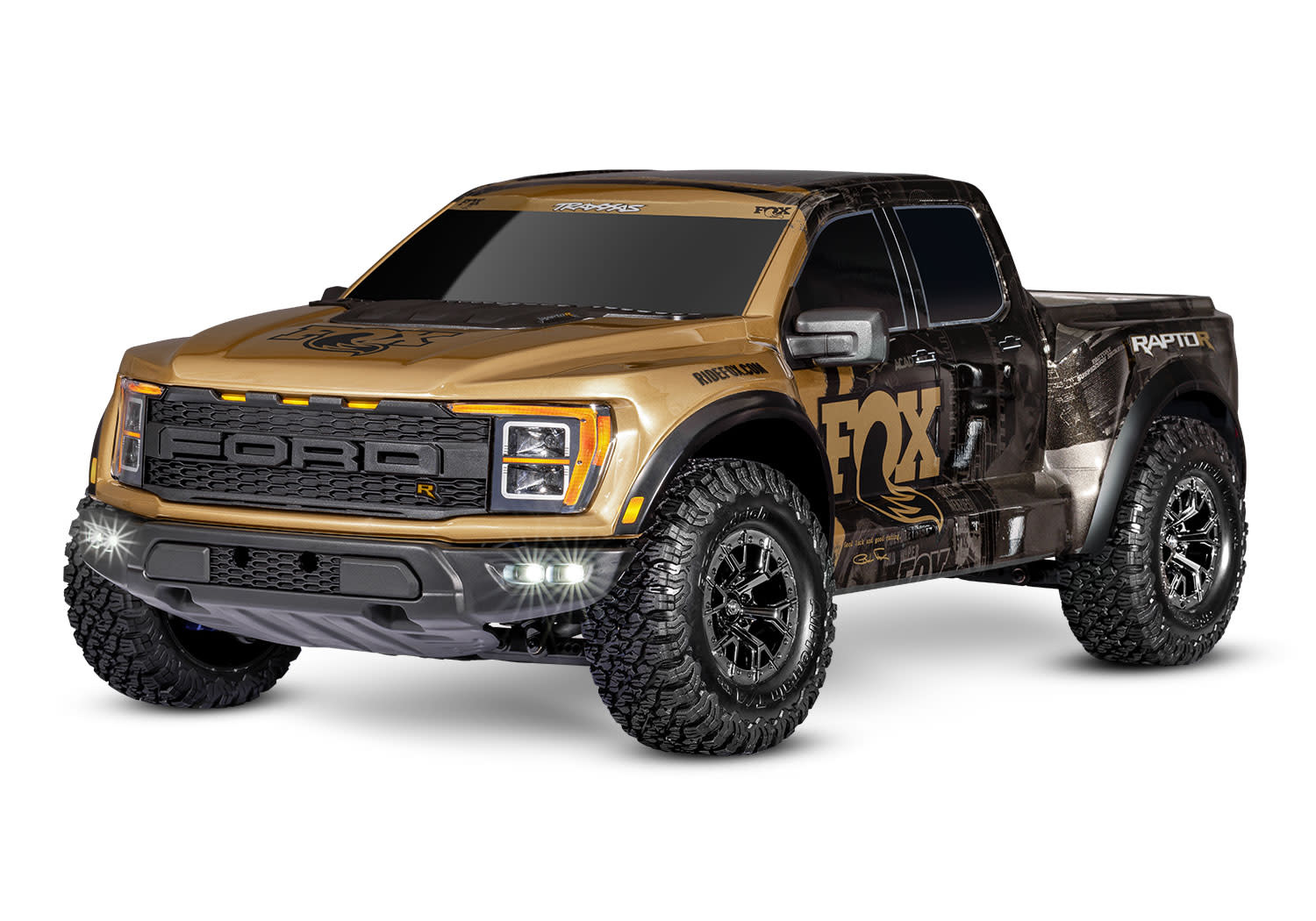

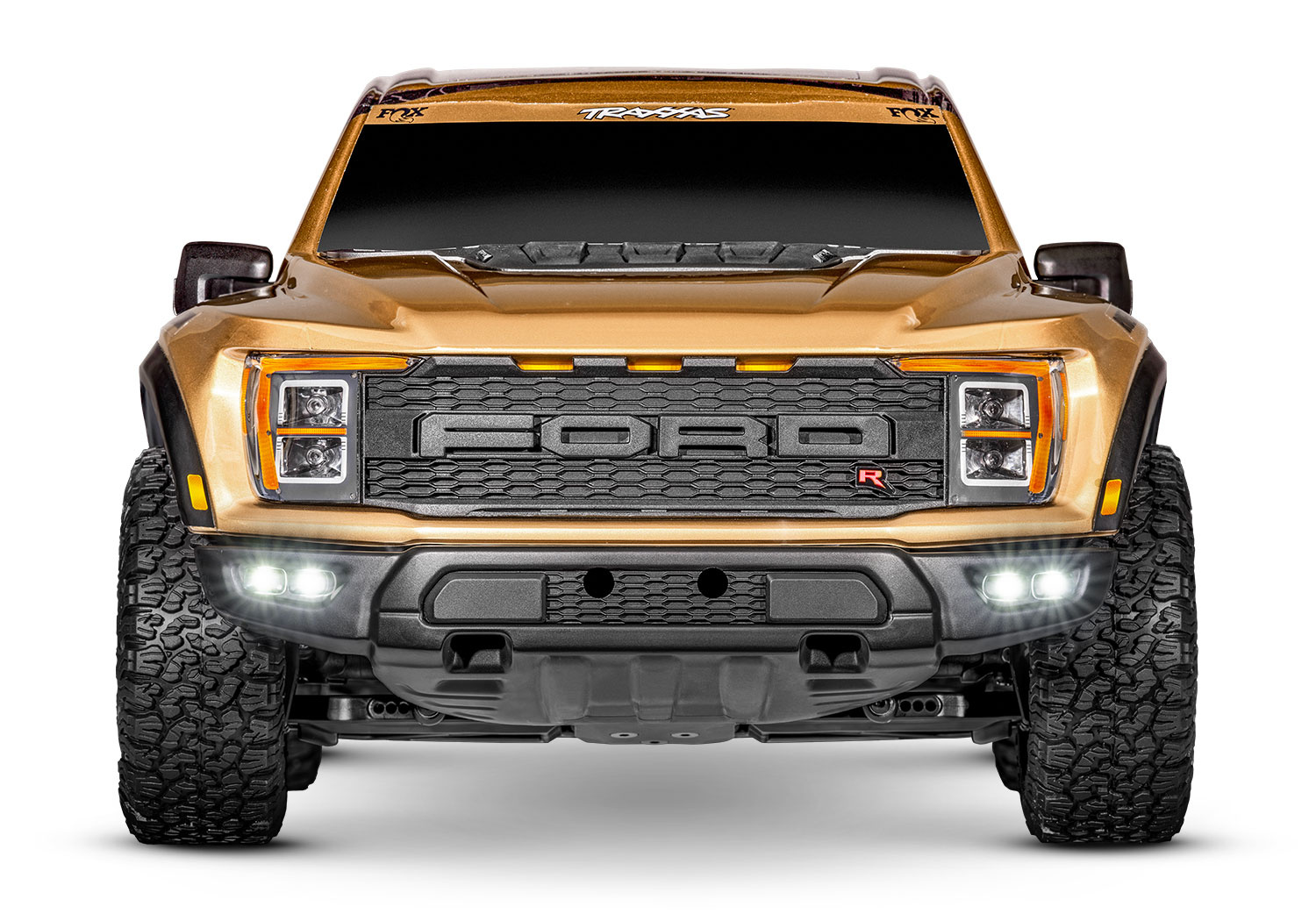

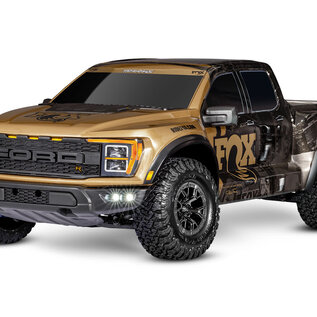

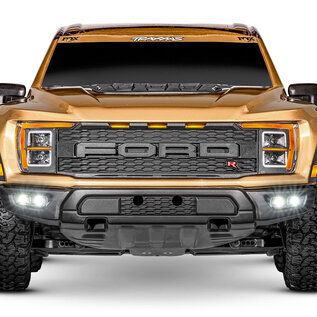

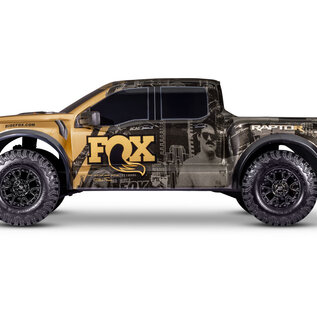

The officially licensed Ford® F-150® Raptor R™ Pro Scale® body brings unmatched realism with molded scale details including bumpers, grille, hood vent, and side mirrors. LED lighting in the front and rear bumpers adds extra visual impact, while a reinforced clipless mounting system provides a clean look and quick access with no posts or body clips.

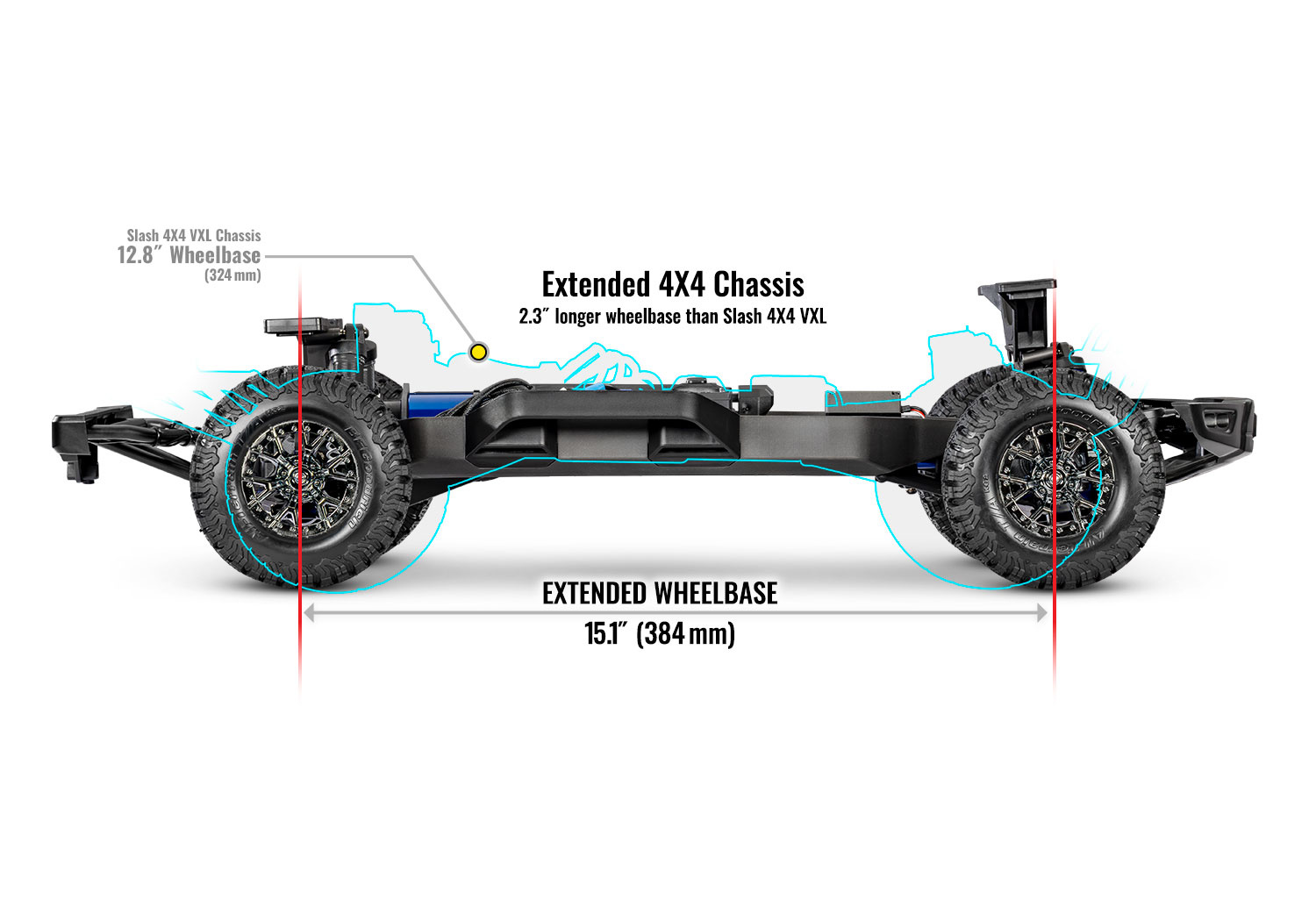

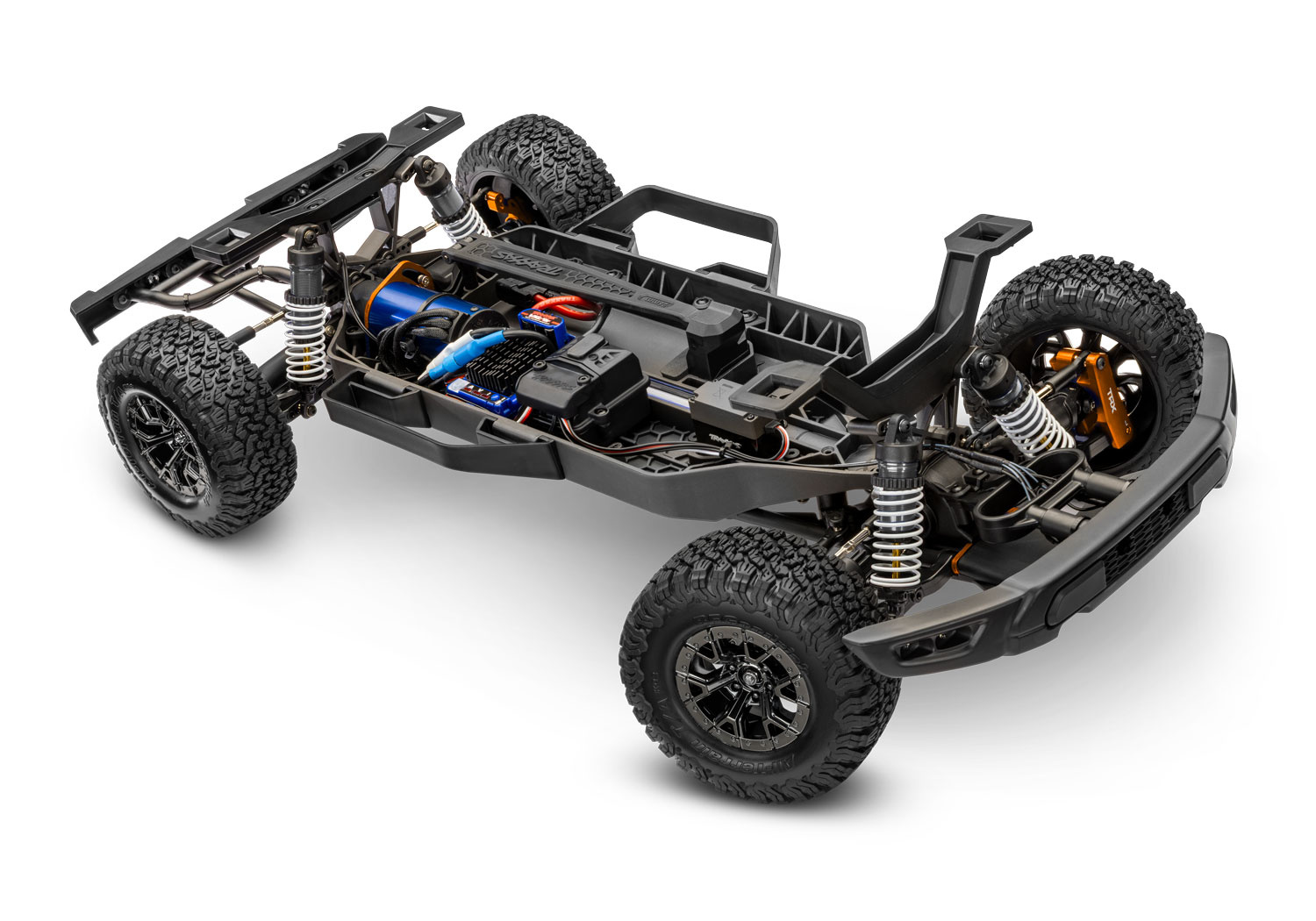

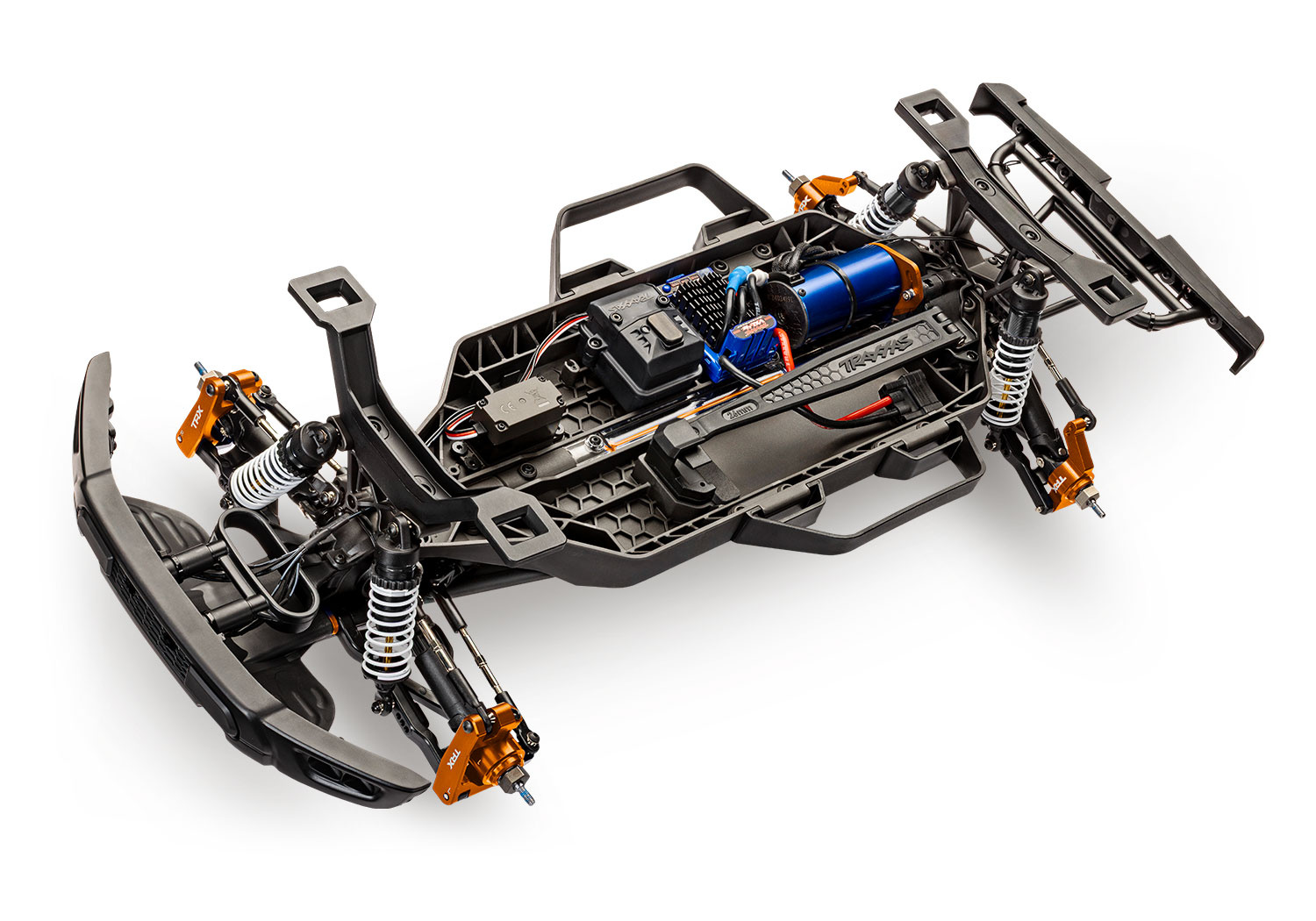

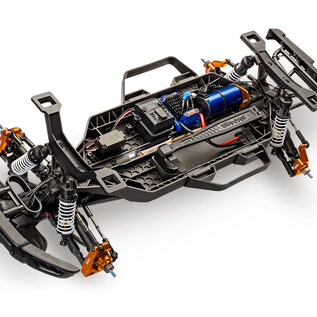

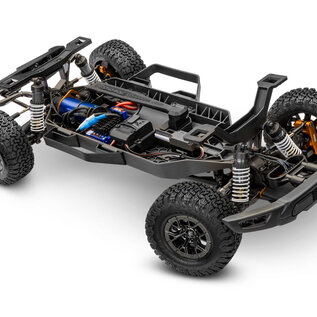

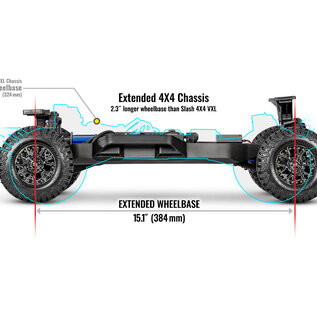

The extended modular chassis tub design delivers high durability with reinforced heavy-duty shock towers, nerf bars for side protection, and a secure battery latch system. Integrated Traxxas Stability Management® and factory-installed telemetry sensors deliver precision control, real-time data, and customizable performance through the TQi™ 2.4GHz radio and Traxxas Link™.
With aluminum GTR shocks, TiN-coated shafts, and adjustable spring collars, the Raptor R 4X4 Ultimate absorbs big hits while maintaining plush handling. Color-matched aluminum C-hubs, steering blocks, and rear carriers ensure strength and style, while heavy-duty arms and adjustable 4mm steel links offer track-tuned handling.
A full-time shaft-driven 4WD system delivers relentless traction, powered by a Velineon® 540XL brushless motor and VXL-4s ESC for 60+mph performance. Steel-gear differentials, Maxx-duty driveshafts, a center differential with 20M oil, and a steel 32-pitch spur gear ensure the driveline handles extreme power with lasting durability.
| Name: | Ford Raptor R 4X4 Ultimate |
|---|---|
| Type: | Short Course Truck |
| Speed: | 60+ mph with 4S LiPo (sold separately) |
| Skill Level: | 2 |
| Scale: | 1/10 |
| Weight: | 6.62 pounds (3.00 kg) |
| Length: | 24.98 inches (637 mm) |
| Width: | 11.63 inches (289 mm) |
| Front Track: | 11.63 inches (289 mm) |
| Height: | 8.91 inches (226 mm) |
| Rear Track: | 11.63 inches (289 mm) |
| Motor Type: | 540XL 2400 Kv sensorless brushless |
|---|---|
| Weight: | 11.18 ounces (317 g) |
| Length: | 3.58 inches (91 mm) |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 5 mm |
| Connector Type: | Traxxas 6.5 mm bullet connectors |
| Input Voltage (cells): | 2S-4S LiPo (7.4 V - 16.8 V) |
|---|---|
| Case Size: | 2.40″ (61 mm) x 2.09″ (53 mm) x 1.42″ (36 mm) |
| Weight: | 4.20 ounces (119 g) |
| BEC Voltage: | Selectable 6.0 or 7.4 volts |
| Motor Connectors: | Traxxas 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | RX input, auxiliary fan connector |
