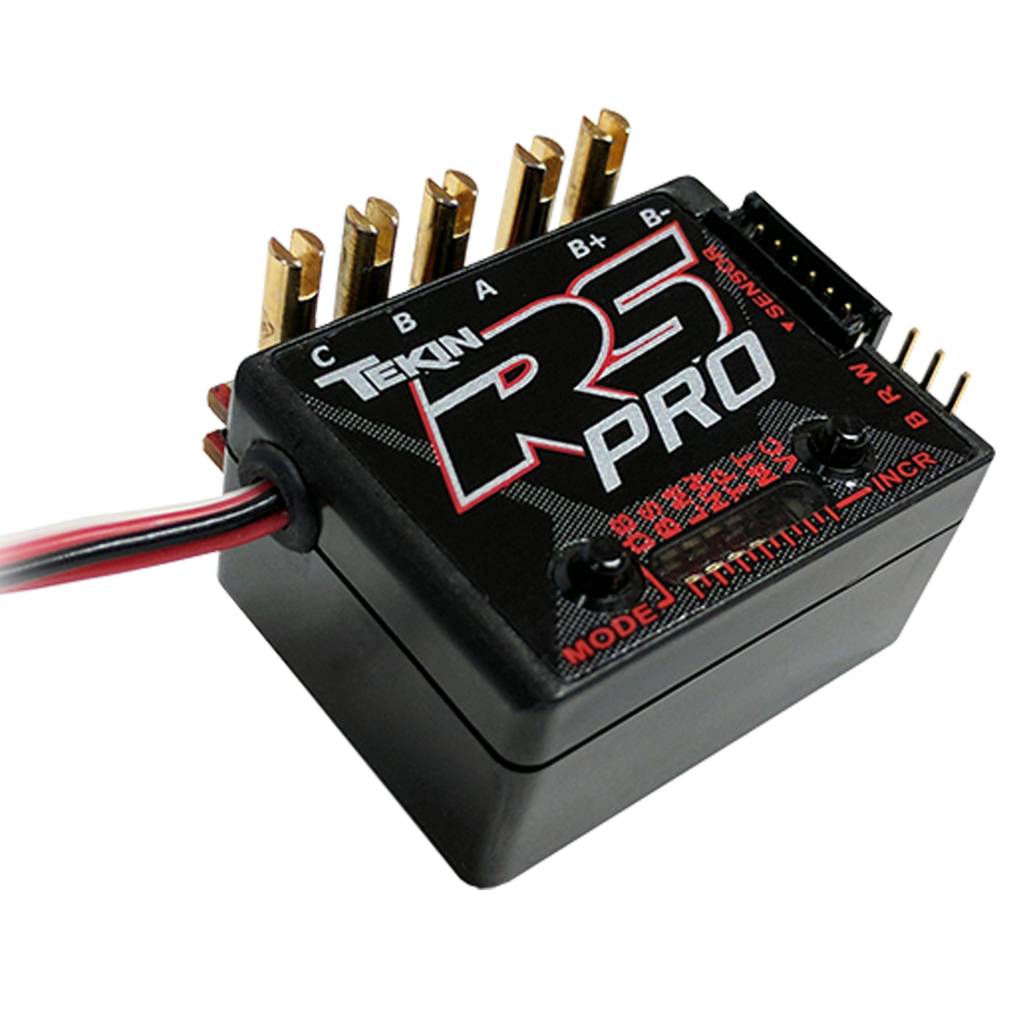

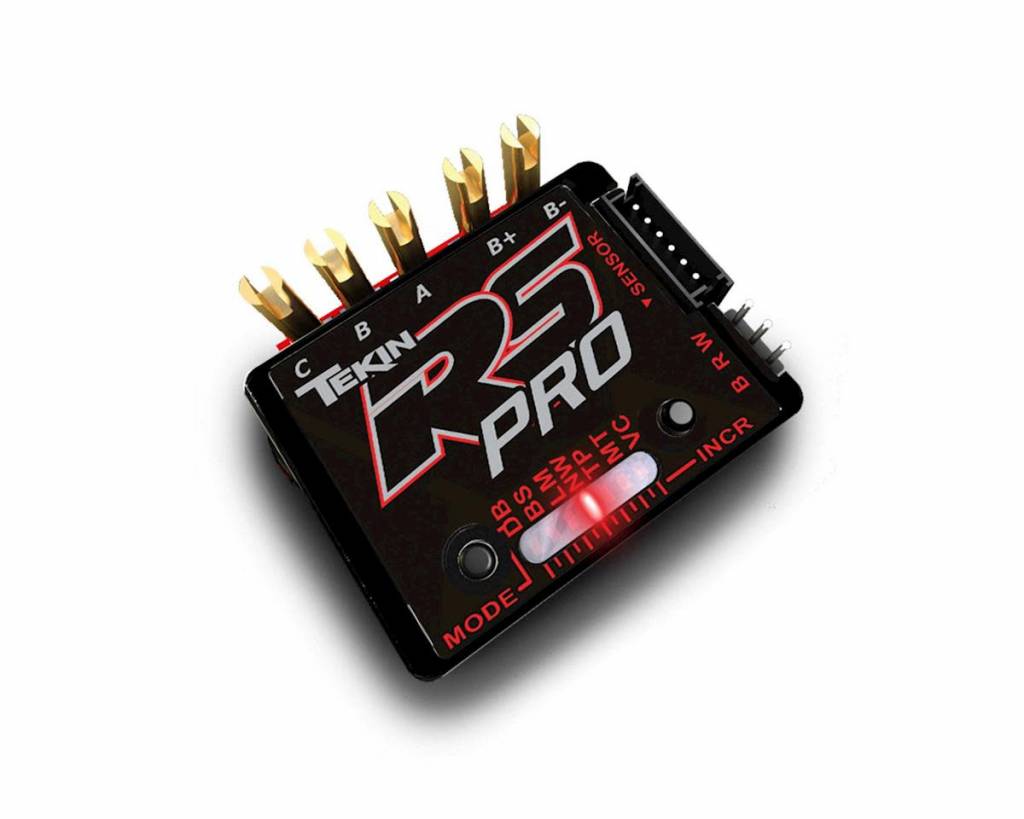

TEKTT1160 RS Pro Black Edition BL Sensored/Sensorless Brushless ESC
| Part Number: | TEKTT1160 |
| Quantity In Stock: | 8 |
TEKTT1160 RS Pro Black Edition BL Sensored/Sensorless Brushless ESC
The Tekin RS PRO Black Edition utilizes both hardware and software advances recently developed for Tekins latest ESC lineup. With its industry-leading Ultra Low Resistance you can be sure that your motor is getting all the power you can give it. More power, smooth control and reliability you can count on: the RS PRO Black Edition is engineered for performance.

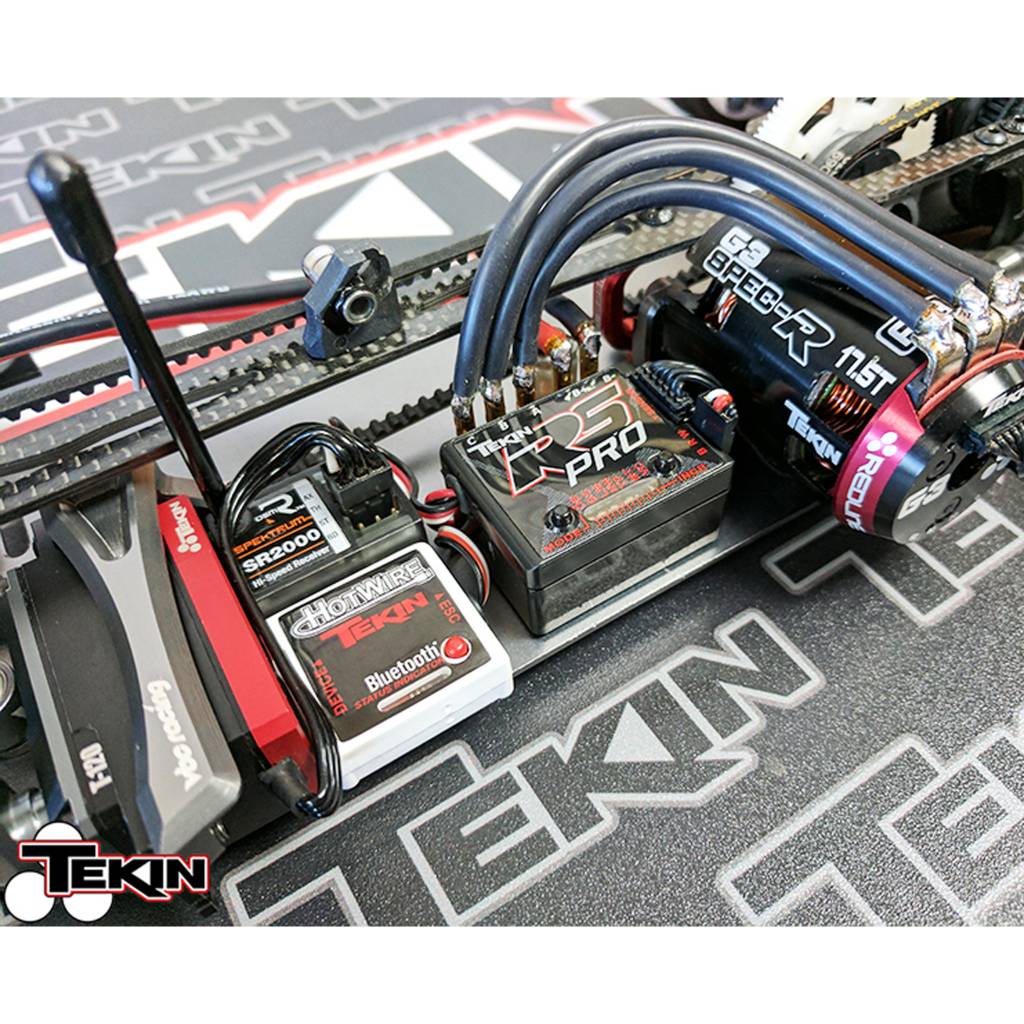

The RS PRO Black Edition was specifically designed for 1S-2S Spec Classes and Drag Racing to take full advantage of the ULR circuit design. ULR FlexWire is included with every Black Edition ESC. Pair the RS PROs with a SPEC-R motor for the ultimate Ultra Low Resistance system.
NOTE: For 1:10 scale Modified 2WD/4WD Buggy and Stadium Truck and Modified Touring Car Tekin recommends the RSX Modified ESC as these setups tend to run at higher temperatures.
Features:
* requires HotWire™ sold separately.
Specifications:
Controls: Forward/Brake/Reverse
Input Voltage RS Pro : 1-3S LiPo / 4-9S NiMH-NiCD
Motor Limit Brushless Mode 2S: 36mm Can - 2-Pole
Motor Limit Brushless Mode 3S: 36mm Can - 2-Pole
Motor Limit Brushed 2S: 36mm Can - 540 & 550
Motor Limit Brushed 3S: 36mm Can - 540 & 550
Amperage: 480Amps per phase*
ON Resistance: .000096ohm*
BEC: 6.0 / 7.4V @ 5.5amps
Weight: 1.23oz / 35g
Dimensions: 1.0 x 1.3 x .68in / 24.5 x 33 x 17.25mm
